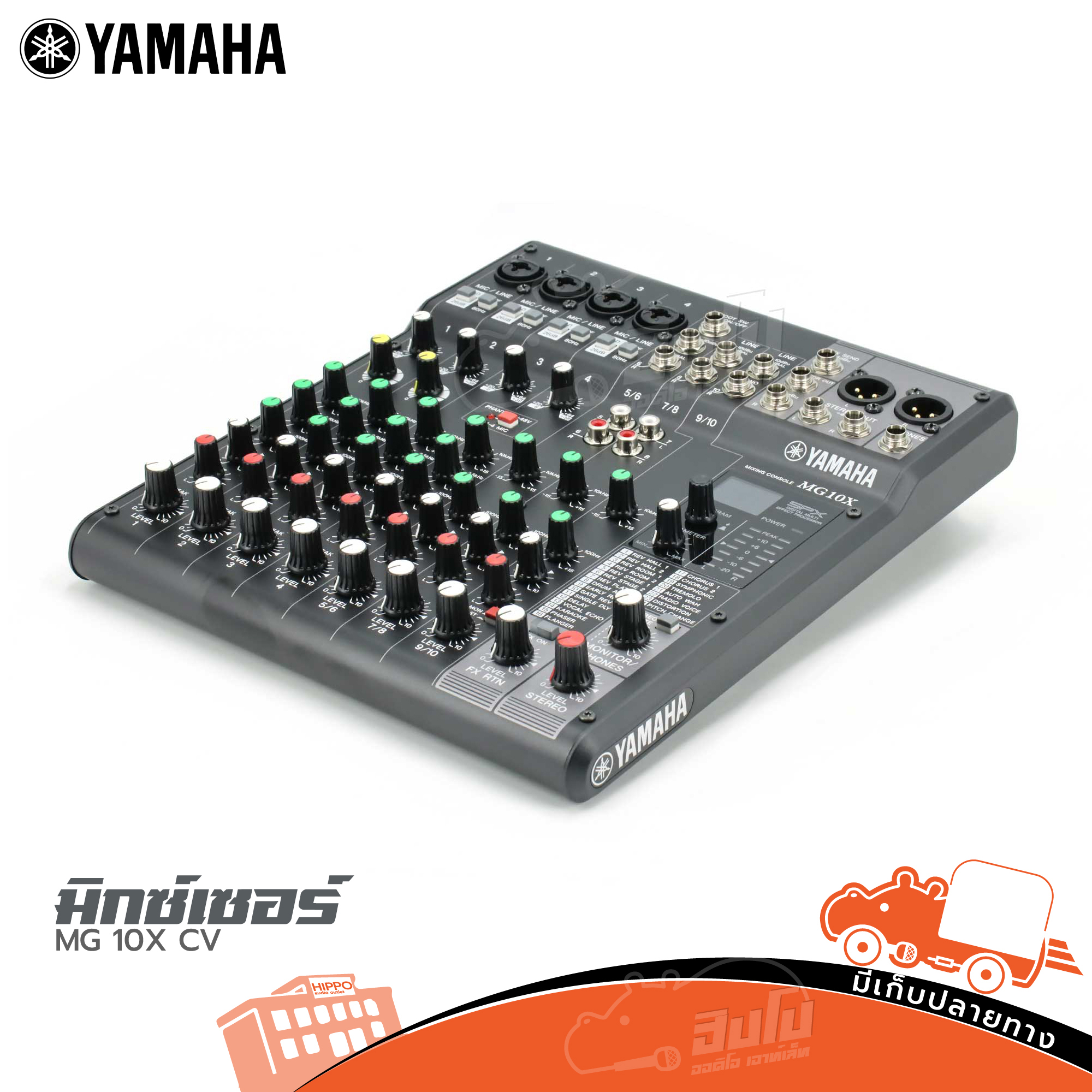

YAMAHA MG 10X CV มิกซ์เซอร์(G8.1)

MG10X CV

Features :

• Rugged, Powder-coated steel chassis for superior durability
• Discrete Class-A microphone preamps
• Built-in SPX digital effects with 24 programs
• Switchable +48V Phantom power
• Color coded controls offer easy operatio

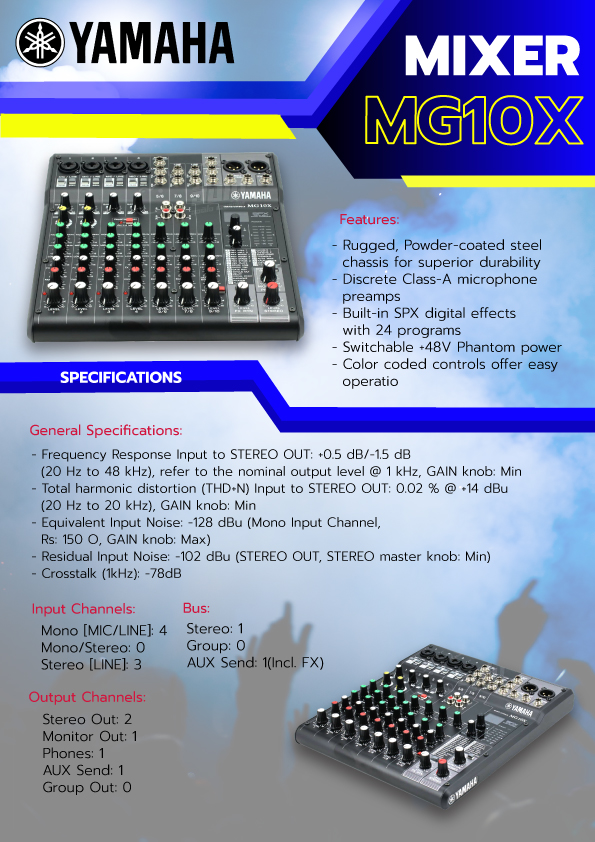

Specifications:

General Specifications:

• Frequency Response Input to STEREO OUT: +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz,
  GAIN knob: Min
• Total harmonic distortion (THD+N) Input to STEREO OUT: 0.02 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min
• Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150 O, GAIN knob: Max)
• Residual Input Noise: -102 dBu (STEREO OUT, STEREO master knob: Min)
• Crosstalk (1kHz): -78dB

Input Channels:

• Mono [MIC/LINE]: 4
• Mono/Stereo [MIC/LINE]: 0
• Stereo [LINE]: 3

Output Channels:

• Stereo Out: 2
• Monitor Out: 1
• Phones: 1
• AUX Send: 1
• Group Out: 0

Bus:

• Stereo: 1
• Group: 0
• AUX Send: 1(Incl. FX)

Input Channel Function:

• Pad (Mono): 26dB
• HPF (Mono, Mono/Stereo): 80 Hz, 12 dbB/oct (Mono)
• COMP (Mono): 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0
  dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
• High EQ: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• Mid EQ: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking,Stereo 2.5 kHz peaking
• Low EQ: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• Peak LED (mono): LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
• Internal Digital Effect: 24 programs
• Phantom Power Voltage: +48V
• Power Requirements: PA-10 Power adapter (included)
• Power Consumption: 22.9W
• Dimensions (W x H x D): 9.6"x 2.8"x 11.6"
• Net Weight: 2.1 kg (4.63 lbs.

Item Includes:

• 1x MG10X CV Mixer
• 1x AC Power Cable (PA10 Power supply with MG10XU)
• 1x Owner's Manual
