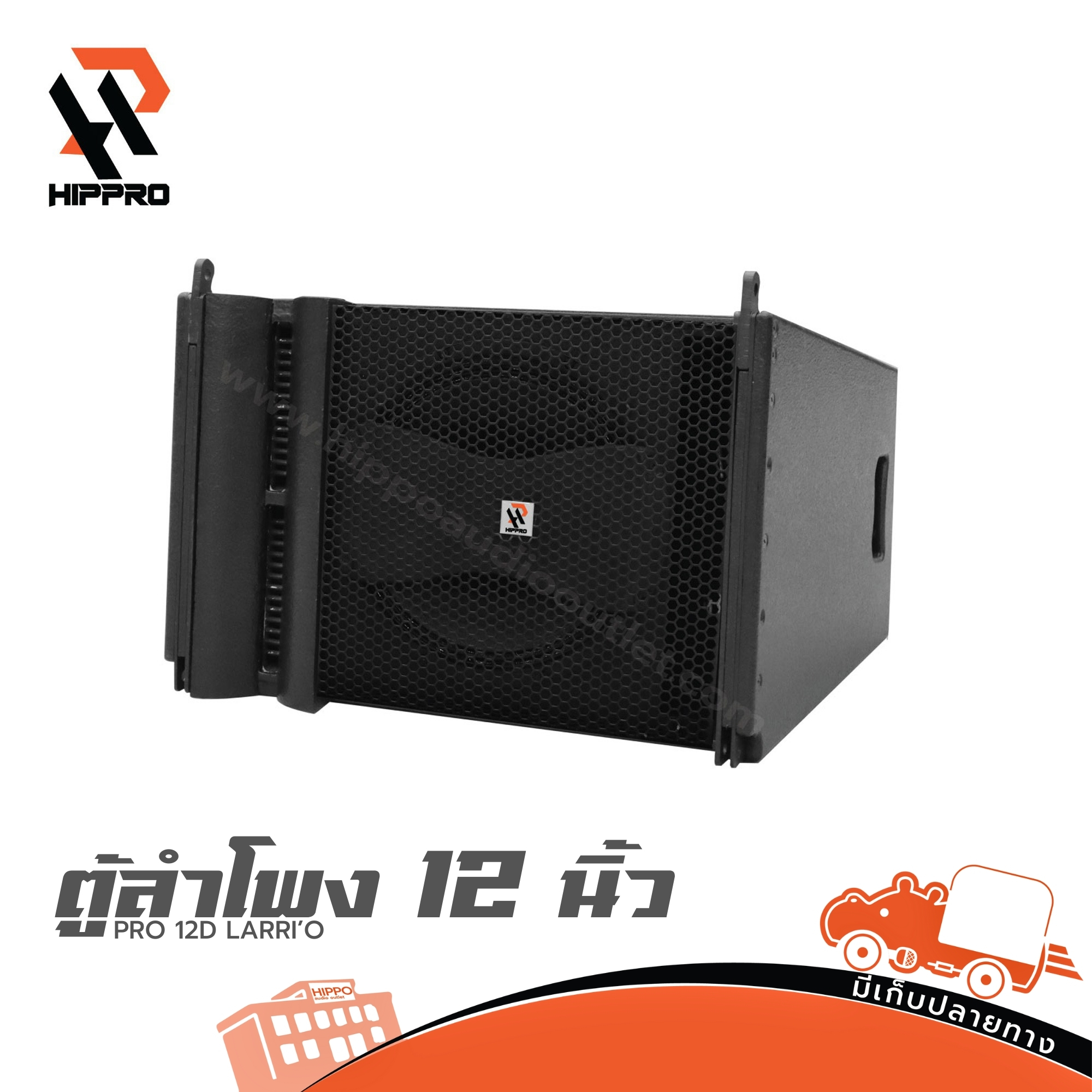

ตู้ลำโพง 12 นิ้ว HIPPRO PRO 12D LARRIO (HP001-01)

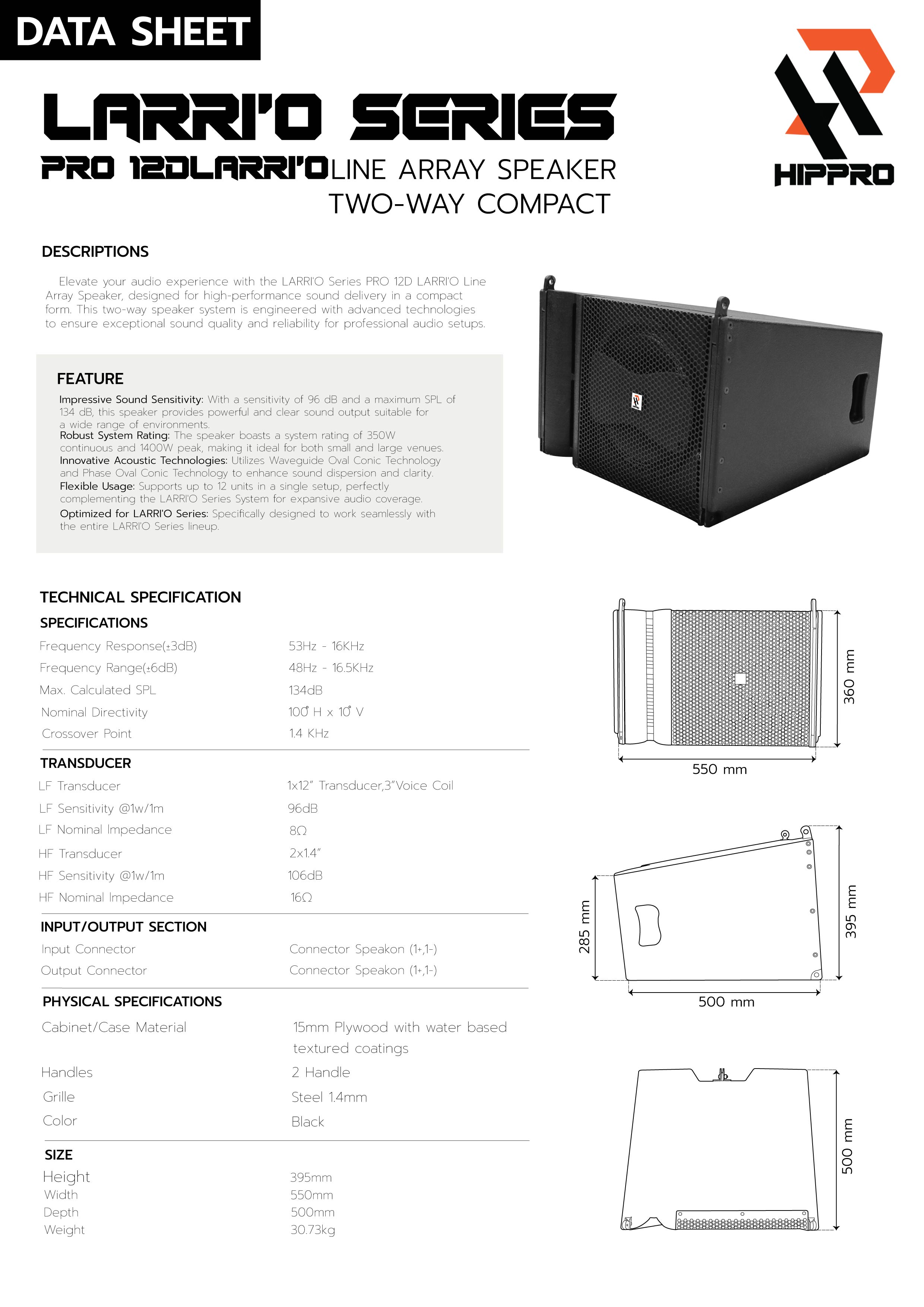

SPECIFICATIONS

PRO 12D LARRI'O

Frequency Response (±3dB)

53Hz - 16KHz

Frequency Range (±6dB)

48Hz - 16.5KHz

Max. Calculated SPL

134dB

Nominal Directivity

100°H x 10°V

Crossover Point

1.4 KHz

TRANSDUCER

LF Transducer

1x12" Transducer, 3" Voice Coil

LF Sensitivity @1w/1m

96dB

LF Nominal Impedance

8Ω

HF Transducer

2x1.4"

HF Sensitivity @1w/1m

106dB

HF Nominal Impedance

16Ω

INPUT/OUTPUT SECTION

Input Connector

Connector Speakon (1+,1-)

Output Connector

Connector Speakon (1+,1-)

PHYSICAL SPECIFICATIONS

Cabinet/Case Material

15mm Plywood with water-based textured coatings

Handles

2 Handles

Grille

Steel 1.4mm

Color

Black

SIZE

Height

395mm

Width

550mm

Depth

500mm

Weight

30.73kg
