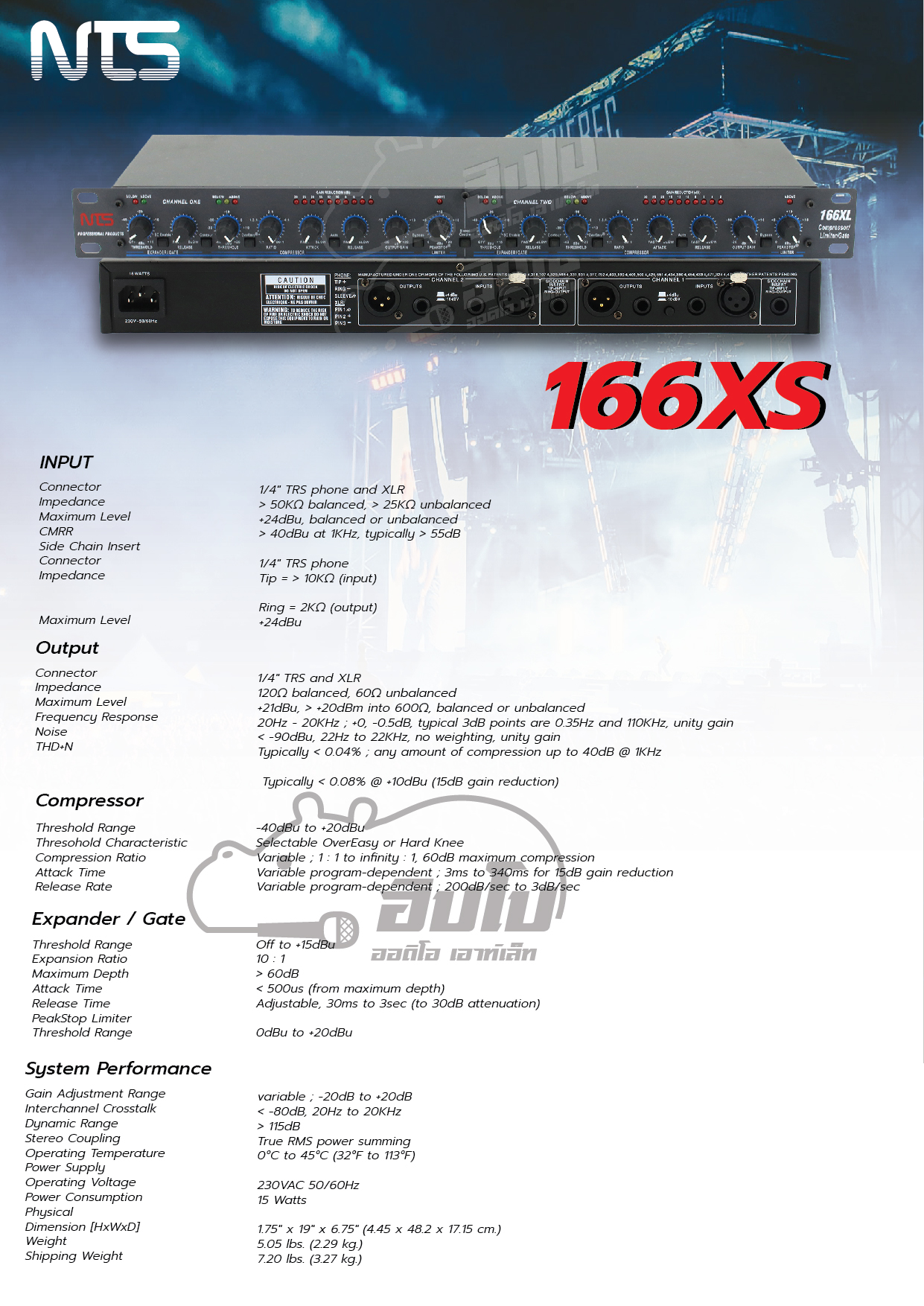

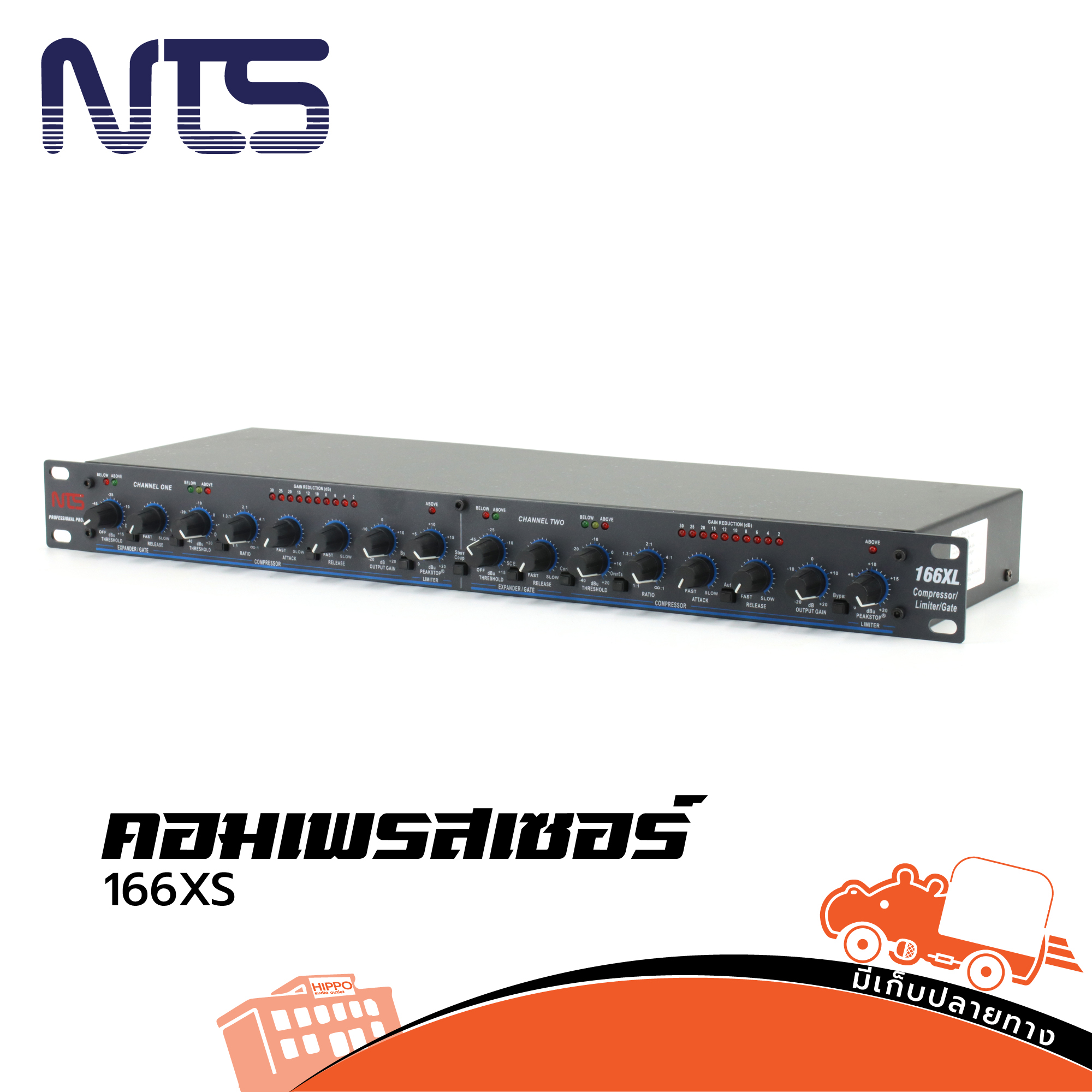

คอมเพรสเซอร์ NTS 166XS
Main Feature
- Program-adaptive expander/gates
- Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
- Stereo or dual-mono operation
- Balanced inputs and outputs on 1/4" TRS and XLR
- Side chain insert
- Classic auto mod
|
input
|
|
Connector
|
1/4" TRS phone and XLR
|
|
Impedance
|
> 50KΩ balanced, > 25KΩ unbalanced
|
|
Maximum Level
|
+24dBu, balanced or unbalanced
|
|
CMRR
|
> 40dBu at 1KHz, typically > 55dB
|
|
Side Chain Insert
|
|
Connector
|
1/4" TRS phone
|
|
Impedance
|
Tip = > 10KΩ (input)
|
|
|
Ring = 2KΩ (output)
|
|
Maximum Level
|
+24dBu
|
|
Output
|
|
Connector
|
1/4" TRS and XLR
|
|
Impedance
|
120Ω balanced, 60Ω unbalanced
|
|
Maximum Level
|
+21dBu, > +20dBm into 600Ω, balanced or unbalanced
|
|
Frequency Response
|
20Hz - 20KHz ; +0, -0.5dB, typical 3dB points are 0.35Hz and 110KHz, unity gain
|
|
Noise
|
< -90dBu, 22Hz to 22KHz, no weighting, unity gain
|
|
THD+N
|
Typically < 0.04% ; any amount of compression up to 40dB @ 1KHz
|
|
|
Typically < 0.08% @ +10dBu (15dB gain reduction)
|
|
Compressor
|
|
Threshold Range
|
-40dBu to +20dBu
|
|
Thresohold Characteristic
|
Selectable OverEasy or Hard Knee
|
|
Compression Ratio
|
Variable ; 1 : 1 to infinity : 1, 60dB maximum compression
|
|
Attack Time
|
Variable program-dependent ; 3ms to 340ms for 15dB gain reduction
|
|
Release Rate
|
Variable program-dependent ; 200dB/sec to 3dB/sec
|
|
Expander / Gate
|
|
Threshold Range
|
Off to +15dBu
|
|
Expansion Ratio
|
10 : 1
|
|
Maximum Depth
|
> 60dB
|
|
Attack Time
|
< 500us (from maximum depth)
|
|
Release Time
|
Adjustable, 30ms to 3sec (to 30dB attenuation)
|
|
PeakStop Limiter
|
|
Threshold Range
|
0dBu to +20dBu
|
|
System Performance
|
|
Gain Adjustment Range
|
variable ; -20dB to +20dB
|
|
Interchannel Crosstalk
|
< -80dB, 20Hz to 20KHz
|
|
Dynamic Range
|
> 115dB
|
|
Stereo Coupling
|
True RMS power summing
|
|
Operating Temperature
|
0°C to 45°C (32°F to 113°F)
|
|
Power Supply
|
|
Operating Voltage
|
230VAC 50/60Hz
|
|
Power Consumption
|
15 Watts
|
|
Physical
|
|
Dimension [HxWxD]
|
1.75" x 19" x 6.75" (4.45 x 48.2 x 17.15 cm.)
|
|
Weight
|
5.05 lbs. (2.29 kg.)
|
|
Shipping Weight
|
7.20 lbs. (3.27 kg.)
|
