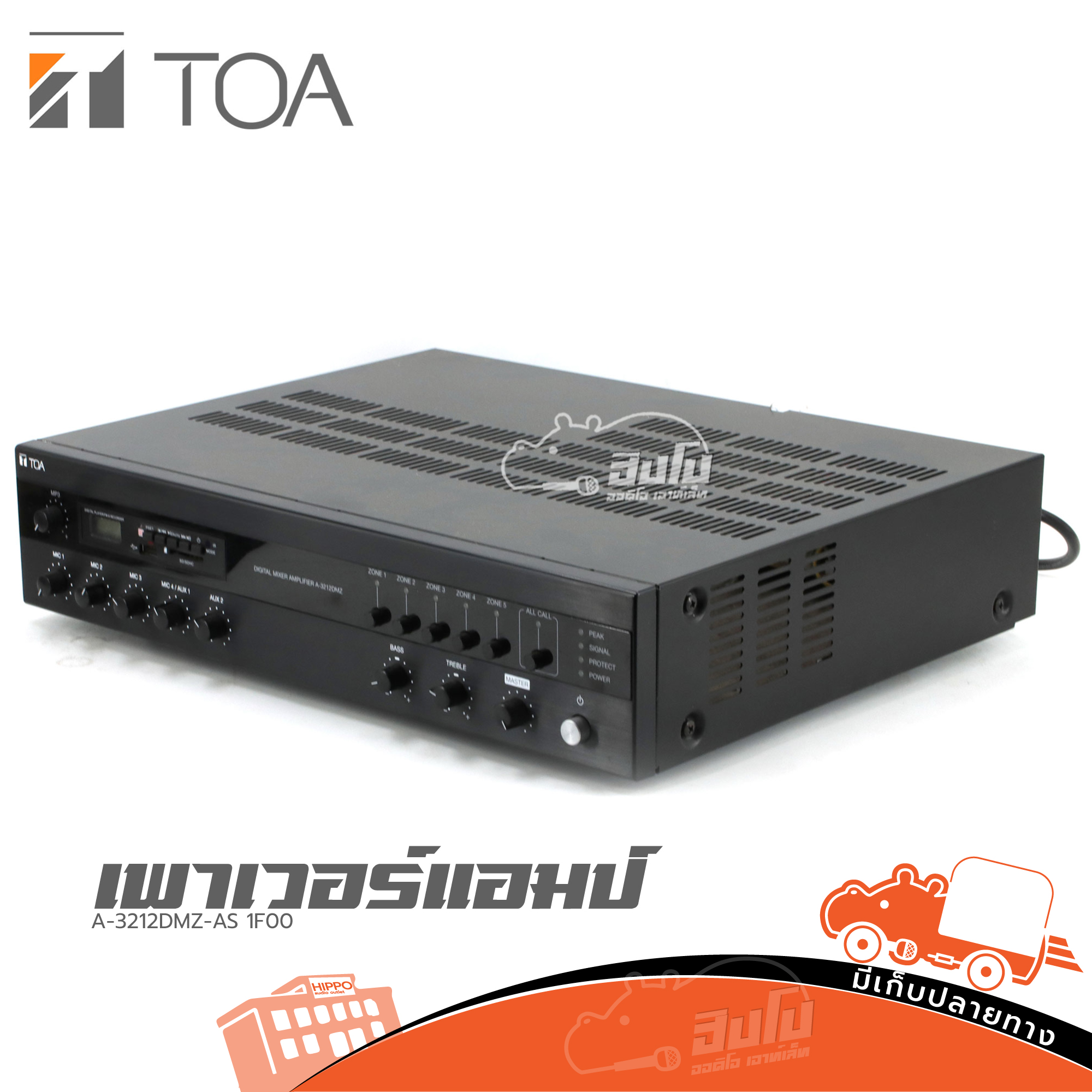

ขยาย TOA A 3212DMZ AS (PP1)

100 - 240 V AC, 50/60Hz

120 W

44 W (AC operation at 1/8 maximum output without clip)

50 - 20,000 Hz

MIC 1: 1 mV (-60 dB*), 600 Ω, balanced, phone jack, selectable to RJ45

MIC 2-3: 1 mV (-60 dB*), 600 Ω, balanced, phone jack

MIC 4: 1 mV (-60 dB*) 600 Ω, balanced, phone jack, selectable to AUX 1

AUX 1: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4

AUX 2: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack

MP3: LED Display, Support USB, SD/MMC card (up to 32GB), Bluetooth, Radio FM, Record

Speaker out: Speaker Output in screw type terminal

Direct line (selectable): 83 Ω (100 V) or 4 Ω

Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack

5-Zone Selector (all zones simultaneously selectable)

DC +21 V (MIC 1)

Over 60 dB

Under 1% at 1 kHz, 1/3 rated power

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

MIC 1: Mutes other input signals by 0-30 dB attenuation

Power, Signal , Peak, Protect

Natural Air Cooling

Panel: ABS resin, black

Case: Steel plate, black

420 (W) × 100.9 (H) × 357 (D) mm

4.6 kg

Removable terminal plug (2pin) x 5, Antenna FM radio (1m) x 1
