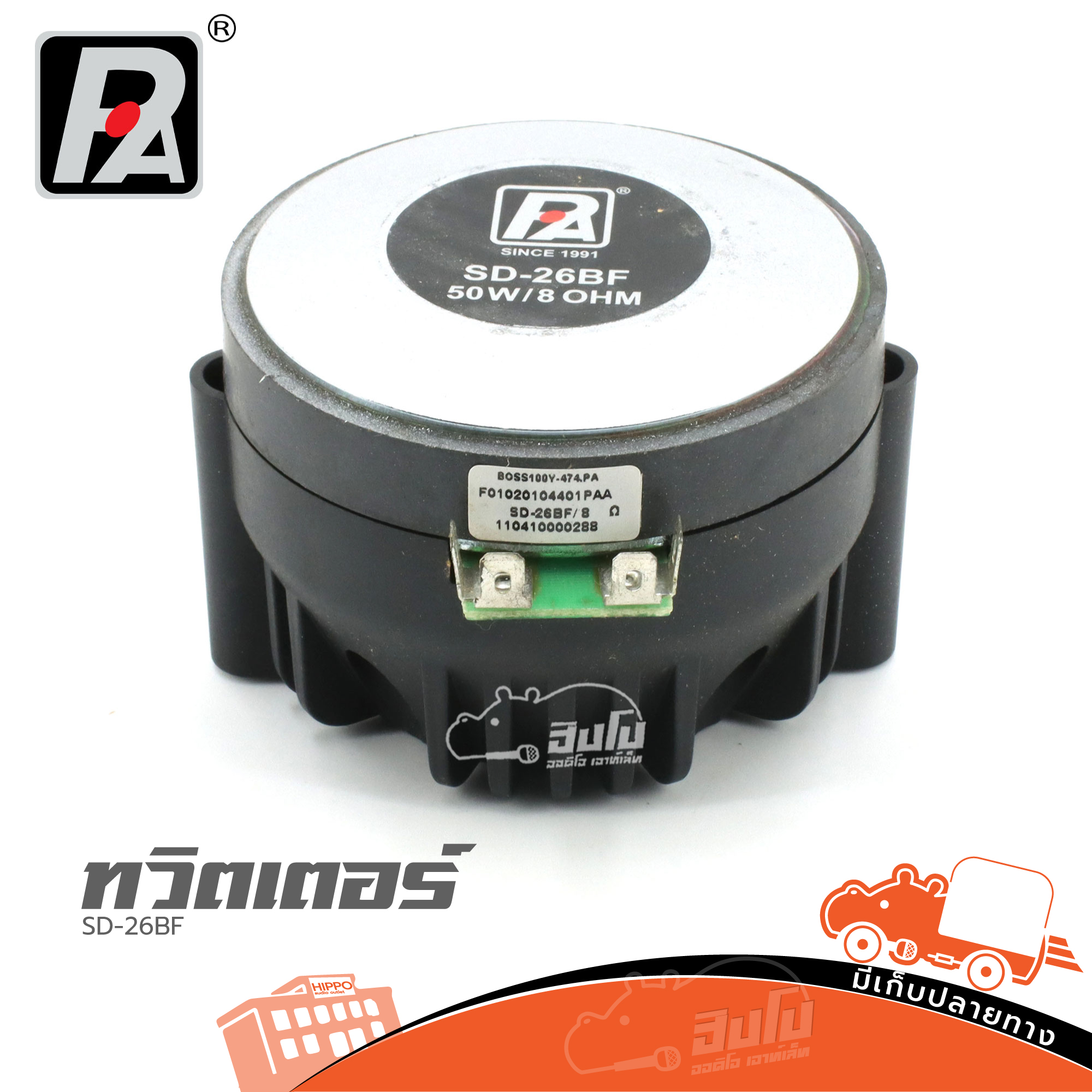

ทวิตเตอร์ P.AUDIO SD 26BF (A8.3)

The P Audio SD-26BF is a small format compression driver that utilizes a precision formed diaphragm assembly. The diaphragm assembly is close spaced to a precision phase plug to ensure excellent acoustic loading. The SD-26BF has an operating range of 1800Hz to 20000Hz and is ideally suited for two way and three way high frequency applications in professional sound reinforcement systems.

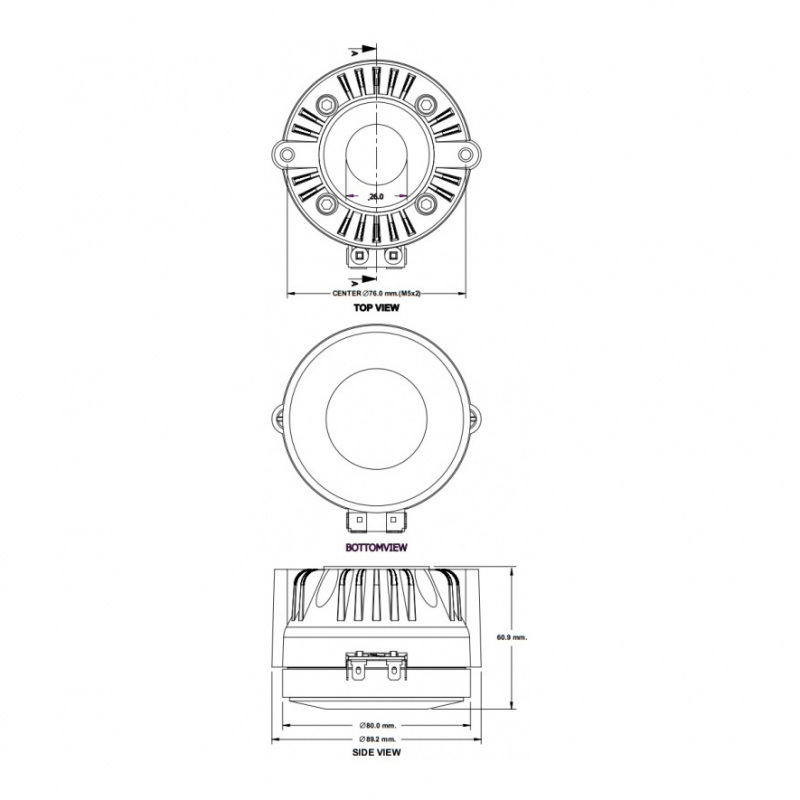

The SD-26BF is a ferrite based magnetic system with an industry standard 1 inch (25.4mm) exit diameter. The mounting configuration is a standard bolt on style. P Audio offers a wide variety high frequency horns that will provide excellent pattern control and acoustic loading for the SD-26BF.

The diaphragm assembly is a 1 inch (25.4mm) diameter aluminium design which utilizes P Audio's very high temperature adhesive systems and precision manufacturing to ensure high power handling and reliability. The construction yields a full 50 watts of power handling capacity.

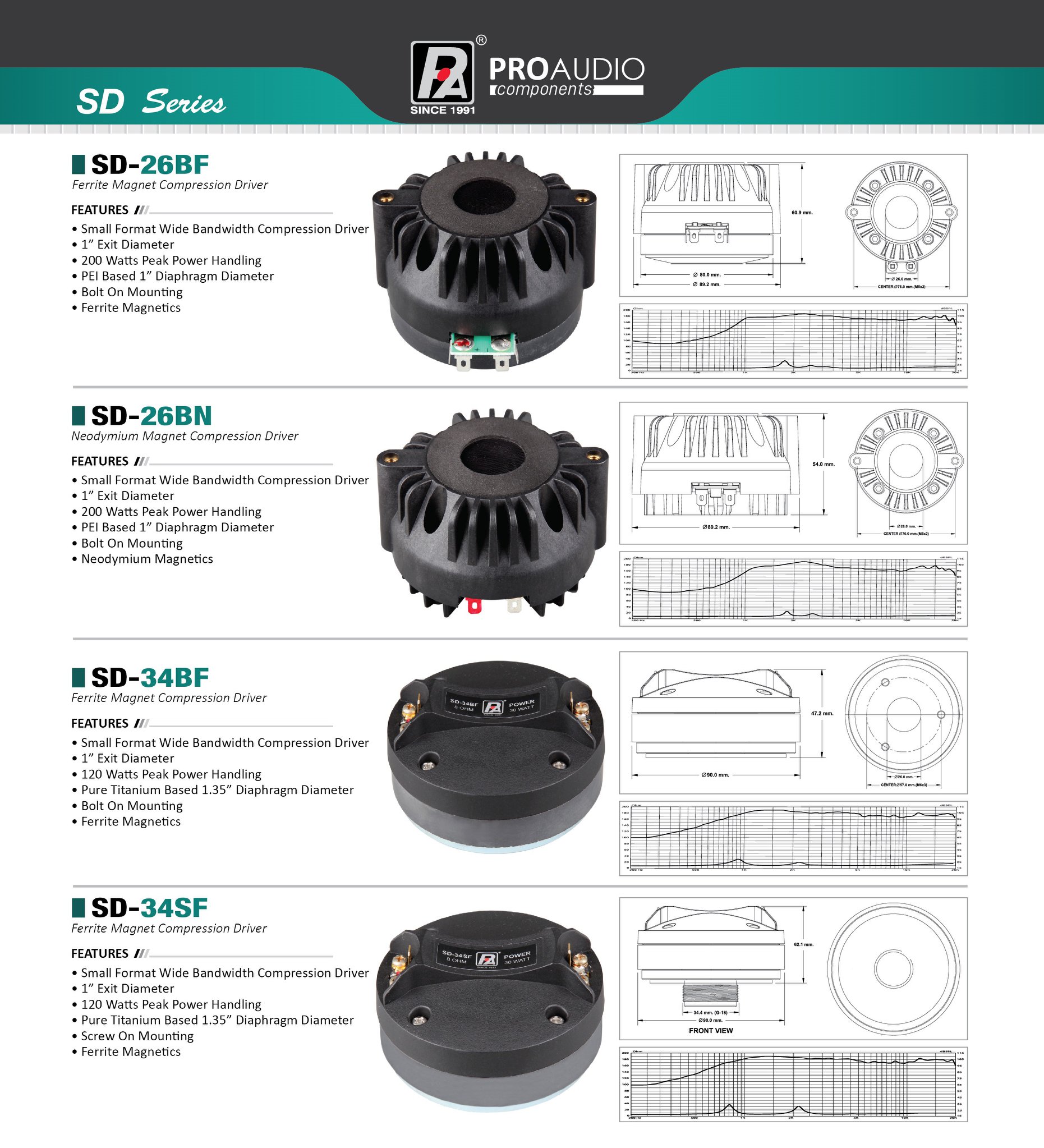

Features

• Small Format Wide Bandwidth Compression Driver

• 1" Exit Diameter

• 100 Watts Peak Power Handling

• PEI Based 1" Diaphragm Diameter

• Bolt On Mounting

• Ferrite Magnetics

Specifications

• Power rating - 25 W(AES)

• Nominal impedance - 8 Ohm

• Sensitivity - 100 dB

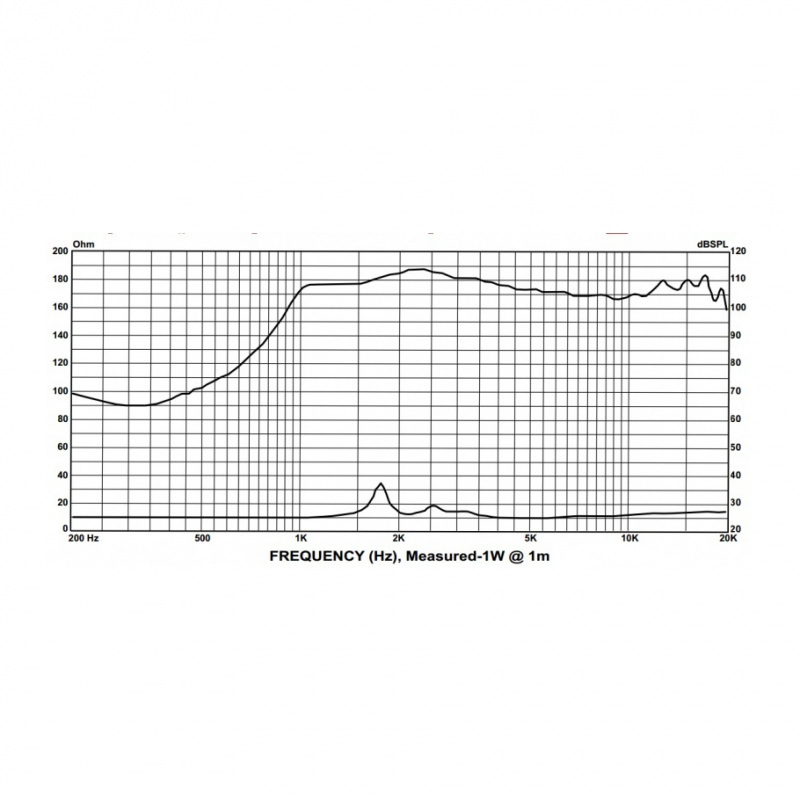

• Frequency range - 1800-20000 Hz

• Recommended min. crossover (12dB/oct) - 2500 Hz

• Voice coil diameter - 25.4mm/1.0 in

• Voice coil material - CCA-W

• Magnet type - Ferrite

• Diaphragm and surround material - Aluminium

• Net Weight - 0.6 kg/1.3 lb

• Packing Dimension WxDxH(mm) - 310mm x395mm x185mm
