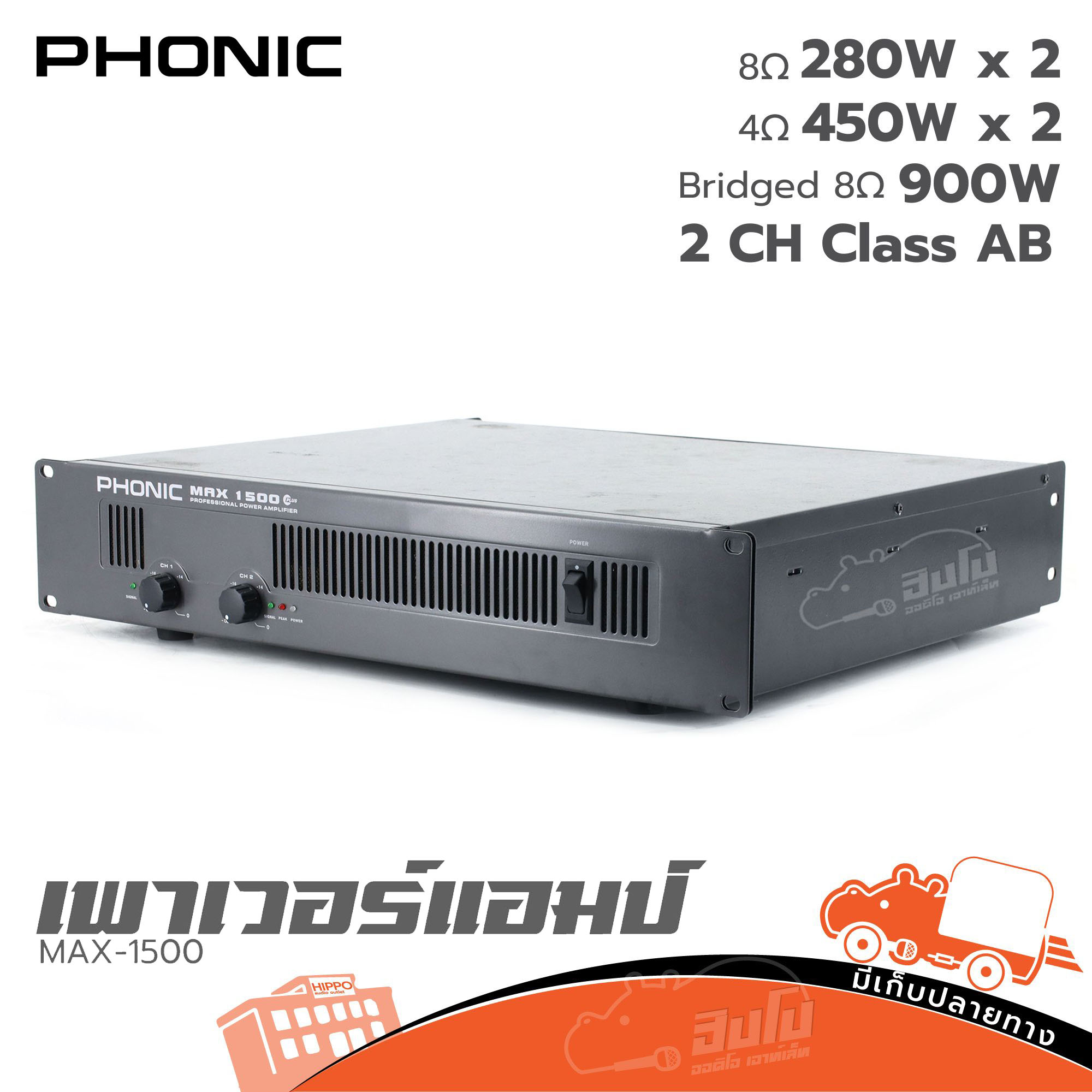

PHONIC MAX 1500 ขยาย (C19.1)

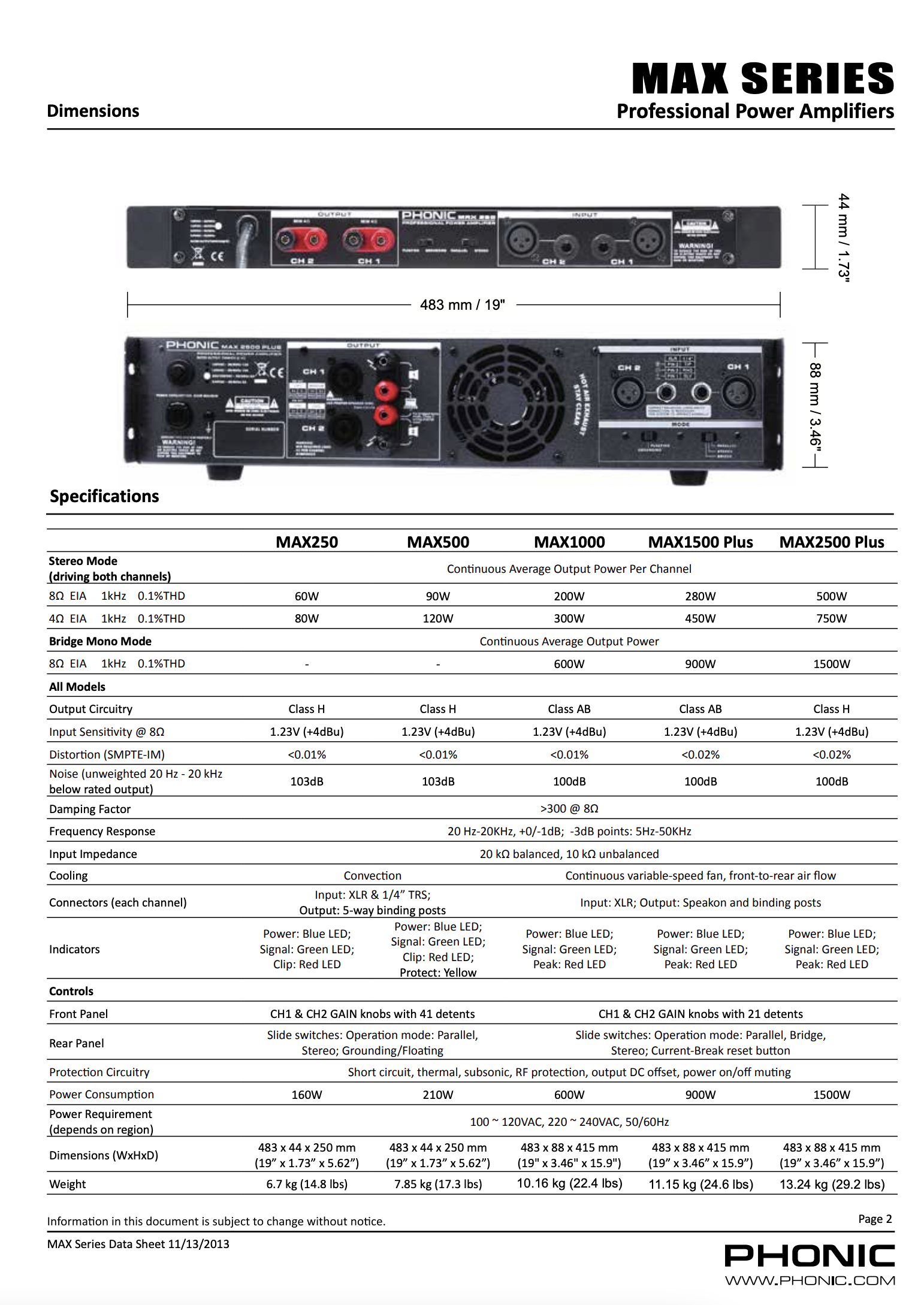

Specifications

• 8Ω EIA - 1kHz - 0.1 THD: 280W
• 4Ω EIA - 1kHz - 0.1 THD: 450W
• 8Ω EIA - 1kHz - 0.1 THD (Bridge Mono Mode): 900W
• Output Circuitry: Class AB
• Input Sensitivity @ 8Ω: 1.23V (+4dBu)
• Distortion (SMPTE-IM): Noise (unweighted 20 Hz - 20 kHz below rated output): 100dB
• Damping Factor: >300 @ 8Ω
• Frequency Response: 20 Hz-20KHz, +0/-1dB; -3dB points: 5Hz-50KHz
• Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced
• Cooling: Continuous variable-speed fan, front-to-rear air flow
• Connectors (each channel): Input: XLR, 1/4" jack; Output: Speakon and binding post.
