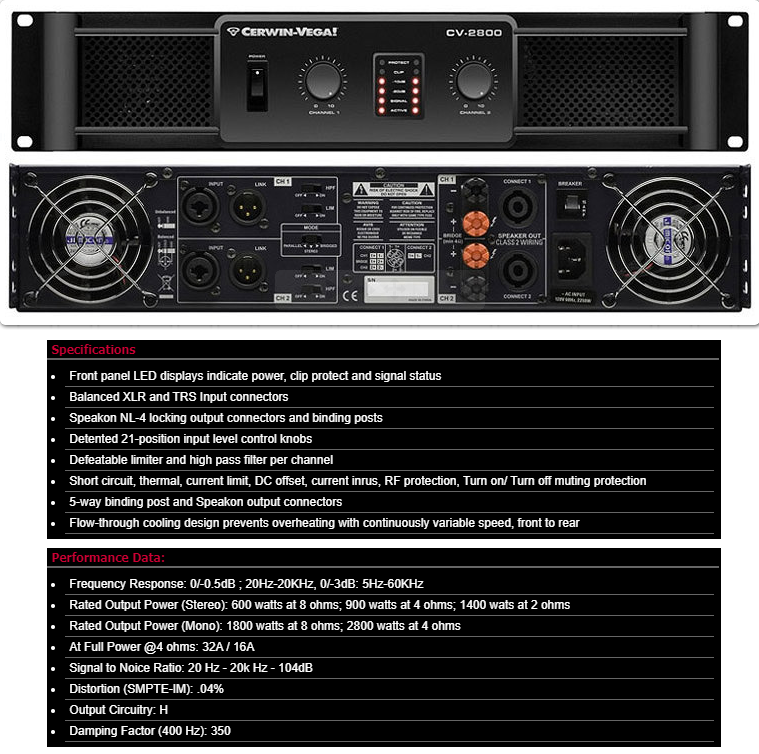

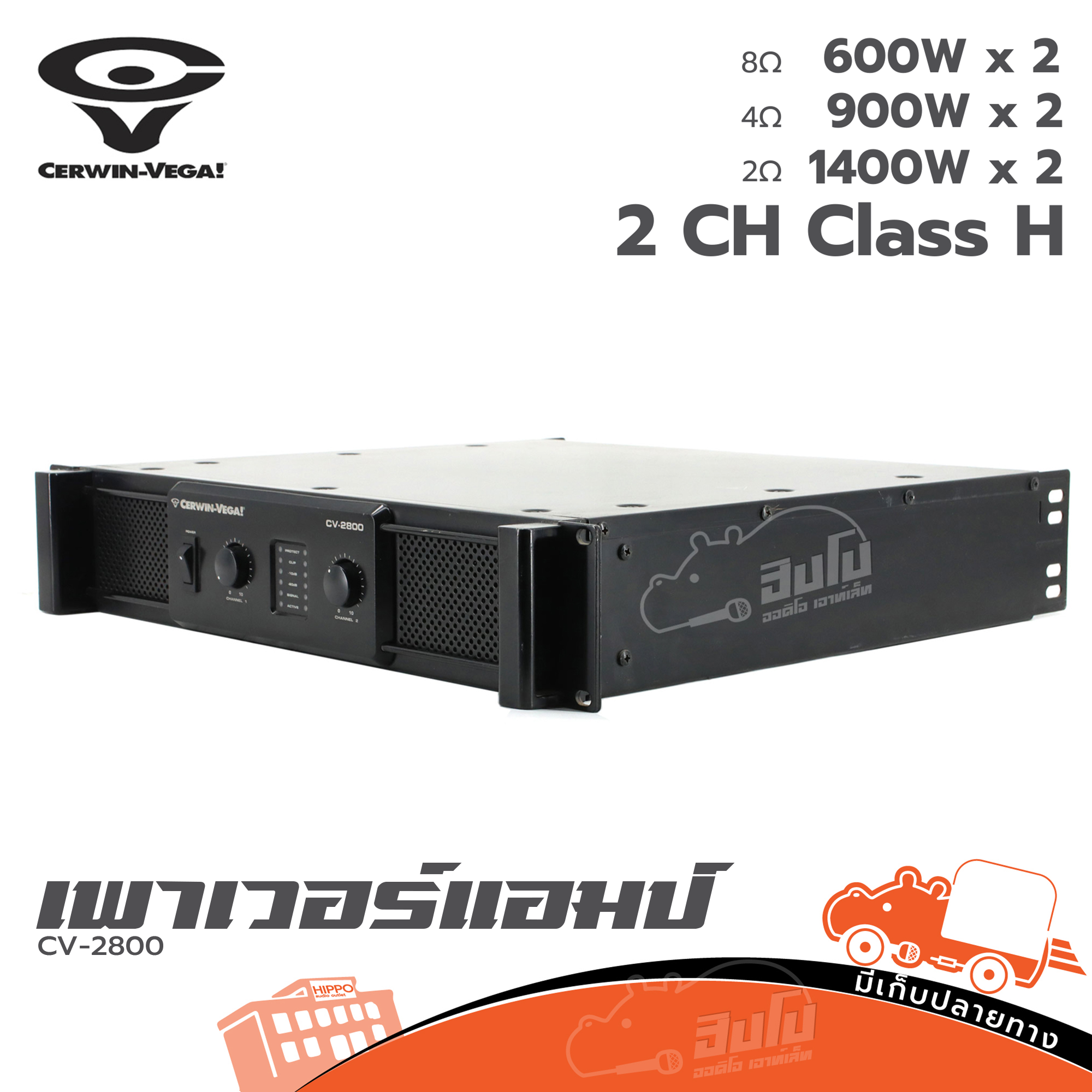

CERWIN CV 2800 ขยาย (HP001-01)

- Front panel LED displays indicate power, clip protect and signal status

- Balanced XLR and TRS Input connectors

- Speakon NL-4 locking output connectors and binding posts

- Detented 21-position input level control knobs

- Defeatable limiter and high pass filter per channel

- Short circuit, thermal, current limit, DC offset, current inrus, RF protection, Turn on/ Turn off

muting protection

- 5-way binding post and Speakon output connectors

- Flow-through cooling design prevents overheating with continuously variable speed, front

to rear

- Performance Data

- Frequency Response: 0/-0.5dB ; 20Hz-20KHz, 0/-3dB: 5Hz-60KHz

- Rated Output Power (Stereo): 600 watts at 8 ohms; 900 watts at 4 ohms; 1400 wats at 2 ohms

- Rated Output Power (Mono): 1800 watts at 8 ohms; 2800 watts at 4 ohms

- At Full Power @4 ohms: 32A / 16A

- Signal to Noice Ratio: 20 Hz - 20k Hz - 104dB

- Distortion (SMPTE-IM): .04%

- Output Circuitry: H

- Damping Factor (400 Hz): 350
