DBX 266XSV คอมเพรสเซอร์ (A6.3)

Keep your live sound under control! When you add a dbx 266xs compressor/limiter/gate to your live sound rig, maintaining a polished and professional edge to your dynamics is incredibly easy. The 266xs's transparent sound lends itself perfectly to guitars, drums, vocals, and virtually any other sound sources. Classic dbx auto mode makes smoothing out levels nearly 100% fool proof. Bright and easy-to-read LED indicators let you easily keep an eye on levels and gain reduction. The 266xs also features a program-adaptive expander/gate on either channel, allowing you to achieve maximum clarity.

Features

• Great sounding dynamics control for any program material

• New gate timing algorithms ensure the smoothest release

• Program-adaptive expander/gates

• LEDs for gain reduction, compression and gate threshold

• Stereo or dual-mono operation

• Balanced inputs and outputs on 1/4" TRS and XLR connectors

• Side Chain insert

• Classic dbx Auto mode for nearly error-proof operation

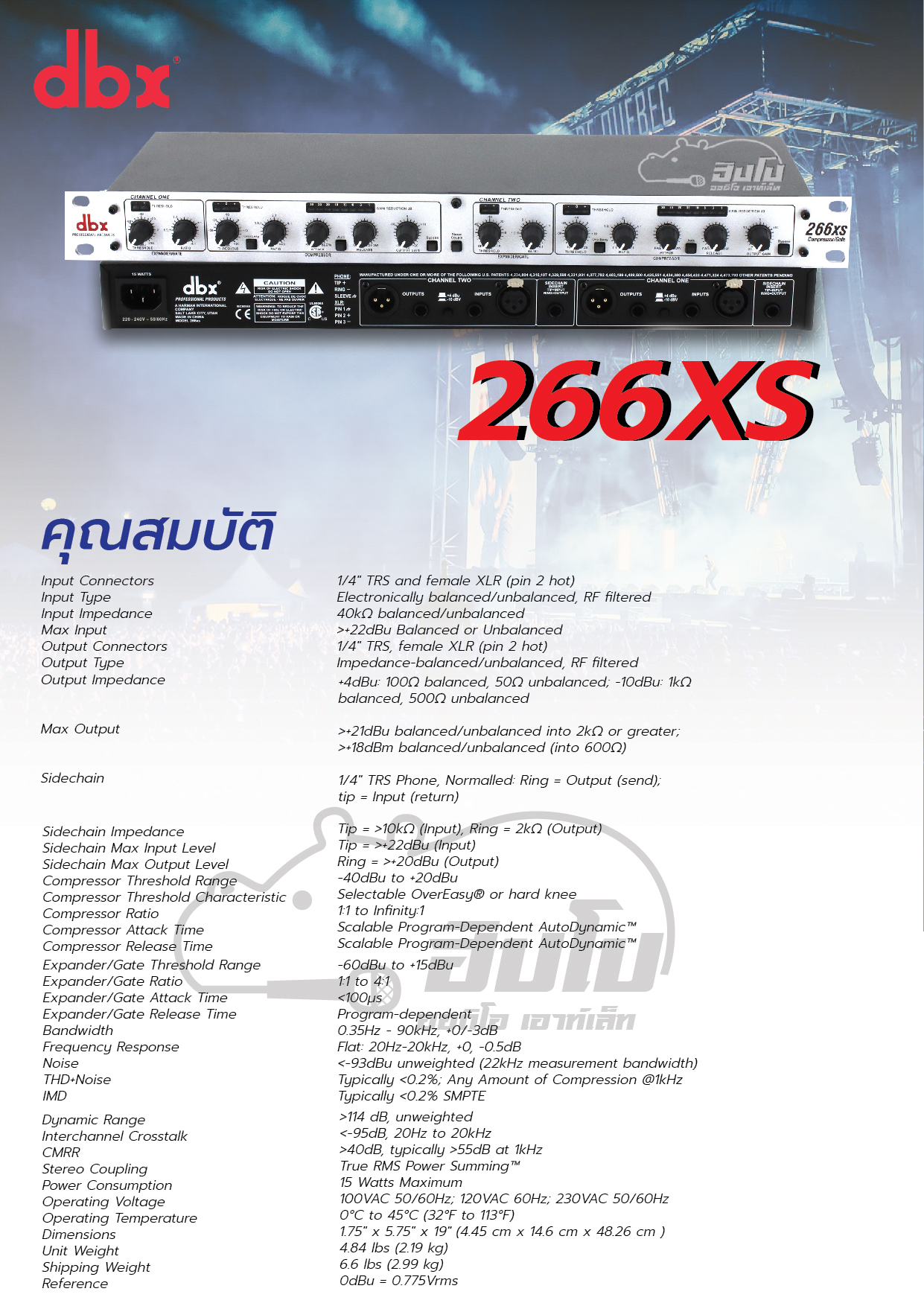

  Input Connectors	1/4" TRS and female XLR (pin 2 hot)
  Input Type	Electronically balanced/unbalanced, RF filtered
  Input Impedance	40kΩ balanced/unbalanced
  Max Input	>+22dBu Balanced or Unbalanced
  Output Connectors	1/4" TRS, female XLR (pin 2 hot)
  Output Type	Impedance-balanced/unbalanced, RF filtered
  Output Impedance	+4dBu: 100Ω balanced, 50Ω unbalanced; -10dBu: 1kΩ balanced, 500Ω unbalanced
  Max Output	>+21dBu balanced/unbalanced into 2kΩ or greater; >+18dBm balanced/unbalanced (into 600Ω)
  Sidechain	1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
  Sidechain Impedance	Tip = >10kΩ (Input), Ring = 2kΩ (Output)
  Sidechain Max Input Level	Tip = >+22dBu (Input)
  Sidechain Max Output Level	Ring = >+20dBu (Output)
  Compressor Threshold Range	-40dBu to +20dBu
  Compressor Threshold Characteristic	Selectable OverEasy® or hard knee
  Compressor Ratio	1:1 to Infinity:1
  Compressor Attack Time	Scalable Program-Dependent AutoDynamic™
  Compressor Release Time	Scalable Program-Dependent AutoDynamic™
  Expander/Gate Threshold Range	-60dBu to +15dBu
  Expander/Gate Ratio	1:1 to 4:1
  Expander/Gate Attack Time	<100µs
  Expander/Gate Release Time	Program-dependent
  Bandwidth	0.35Hz - 90kHz, +0/-3dB
  Frequency Response	Flat: 20Hz-20kHz, +0, -0.5dB
  Noise	<-93dBu unweighted (22kHz measurement bandwidth)
  THD+Noise	Typically <0.2%; Any Amount of Compression @1kHz
  IMD	Typically <0.2% SMPTE
  Dynamic Range	>114 dB, unweighted
  Interchannel Crosstalk	<-95dB, 20Hz to 20kHz
  CMRR	>40dB, typically >55dB at 1kHz
  Stereo Coupling	True RMS Power Summing™
  Power Consumption	15 Watts Maximum
  Operating Voltage	100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
  Operating Temperature	0°C to 45°C (32°F to 113°F)
  Dimensions	1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm )
  Unit Weight	4.84 lbs (2.19 kg)
  Shipping Weight	6.6 lbs (2.99 kg)
  Reference	0dBu = 0.775Vrms
