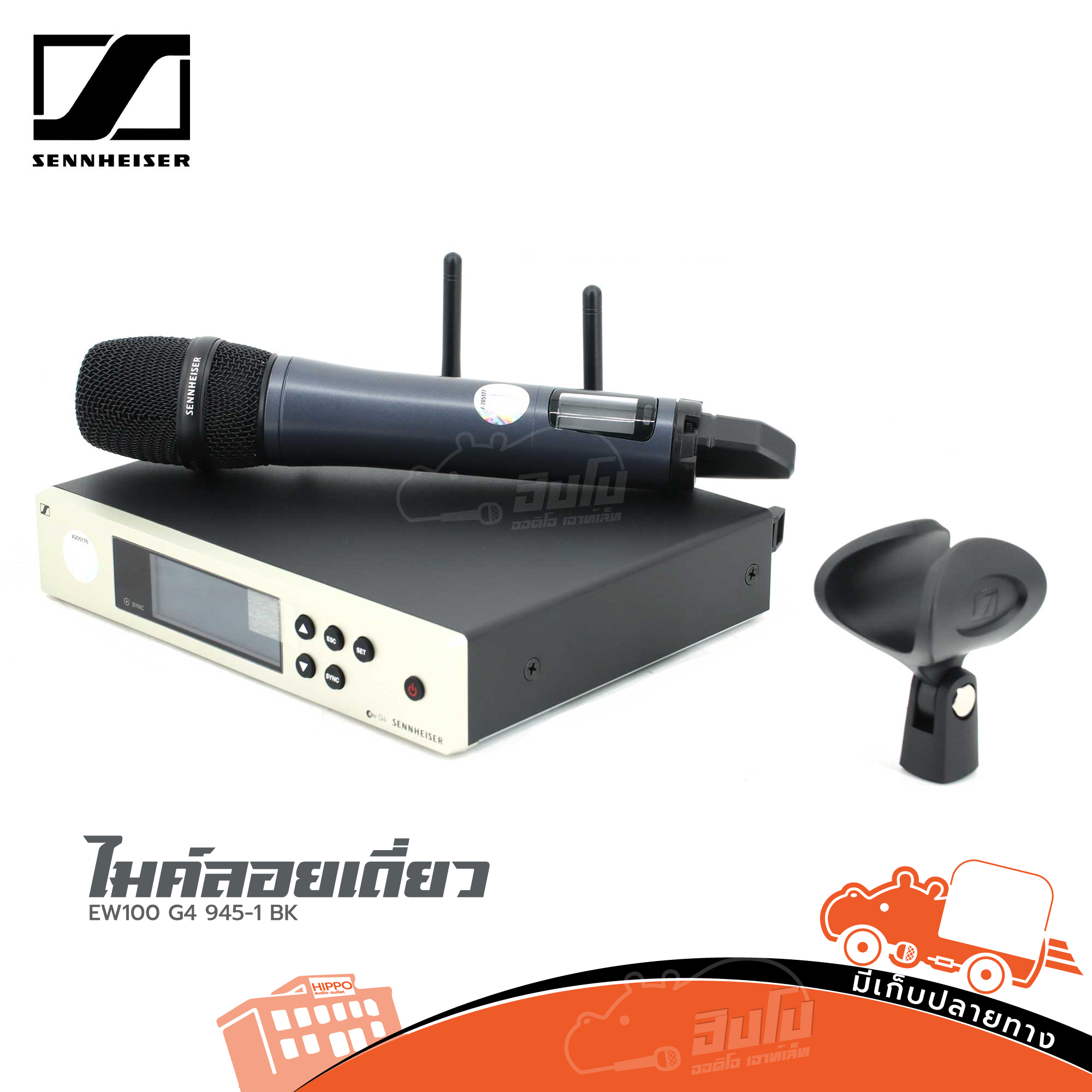

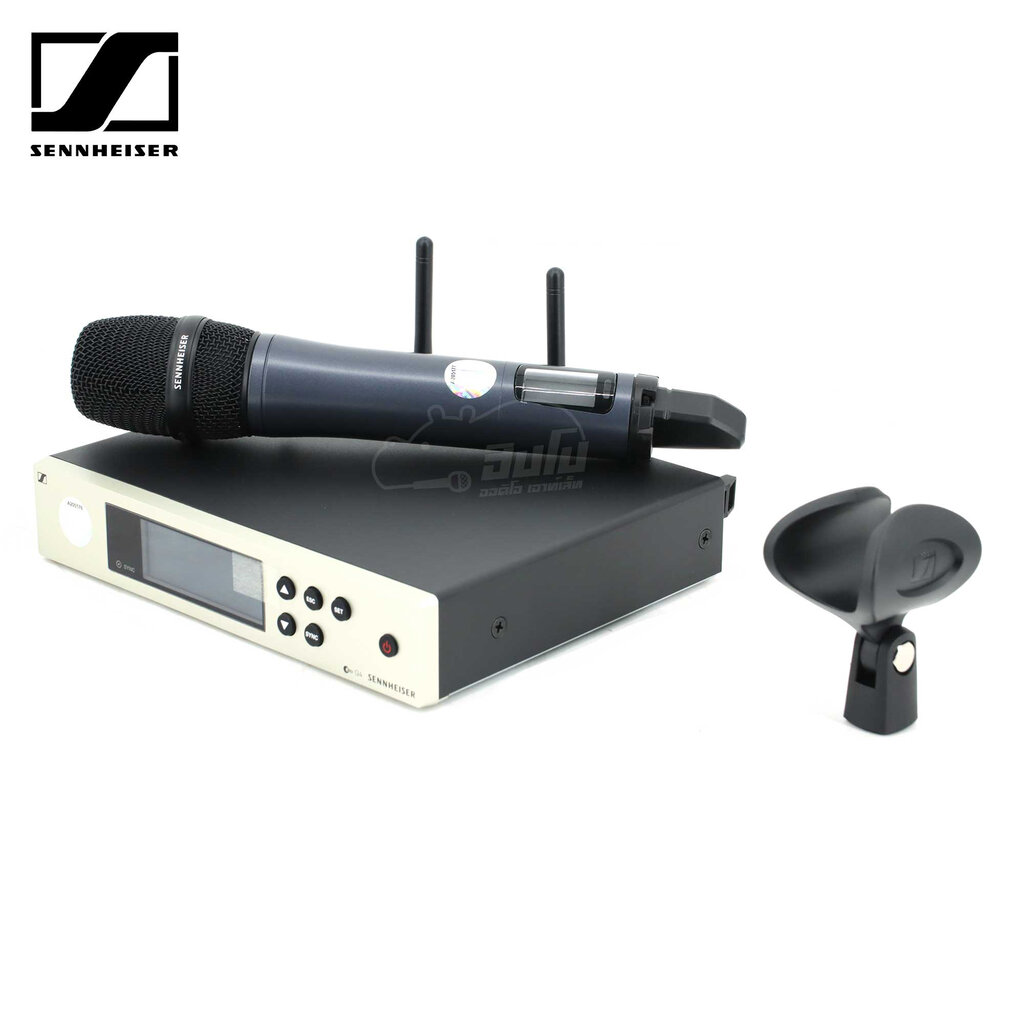

ไมค์โครโฟนแบบไร้สาย SENNHEISER EW100 G4 945 1BK (ลอยเดี่ยว) (HP001-01)

Features:

• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission range: Up to 100 meters / 300′
• High RF output power (up to 30 mW) depending on country regulations

คุณสมบัติ

EM 100 G4

• Frequency range : 748.2 – 757.8 Mhz
• Dimensions Approx. 190 x 212 x 43 mm
• Compander Sennheiser HDX
• THD, total harmonic distortion ≤ 0.9 %
• Weight Approx. 980 g
• Audio output 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
• Signal-to-noise ratio ≥ 110 dBA
• Switching bandwidth up to 42 MHz
• Peak deviation ±48 kHz
• Nominal deviation ±24 kHz
• Modulation Wideband FM
• Power supply 12 V DC
• Antenna connector 2 BNC sockets
• Current consumption 300 mA
• Adjacent channel rejection Typically ≥ 65 dB
• Intermodulation attenuation Typically ≥ 65 dB
• Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF sensitivity < 2.5 μV for 52 dBA eff S/N
• Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV
• Equalizer Preset 1: Flat
• Preset 2: Low Cut (-3 dB at 180 Hz)
• Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
• Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range -10 °C to +55 °C
• Receiver Principle True diversity
• Blocking ≥ 70 dB
