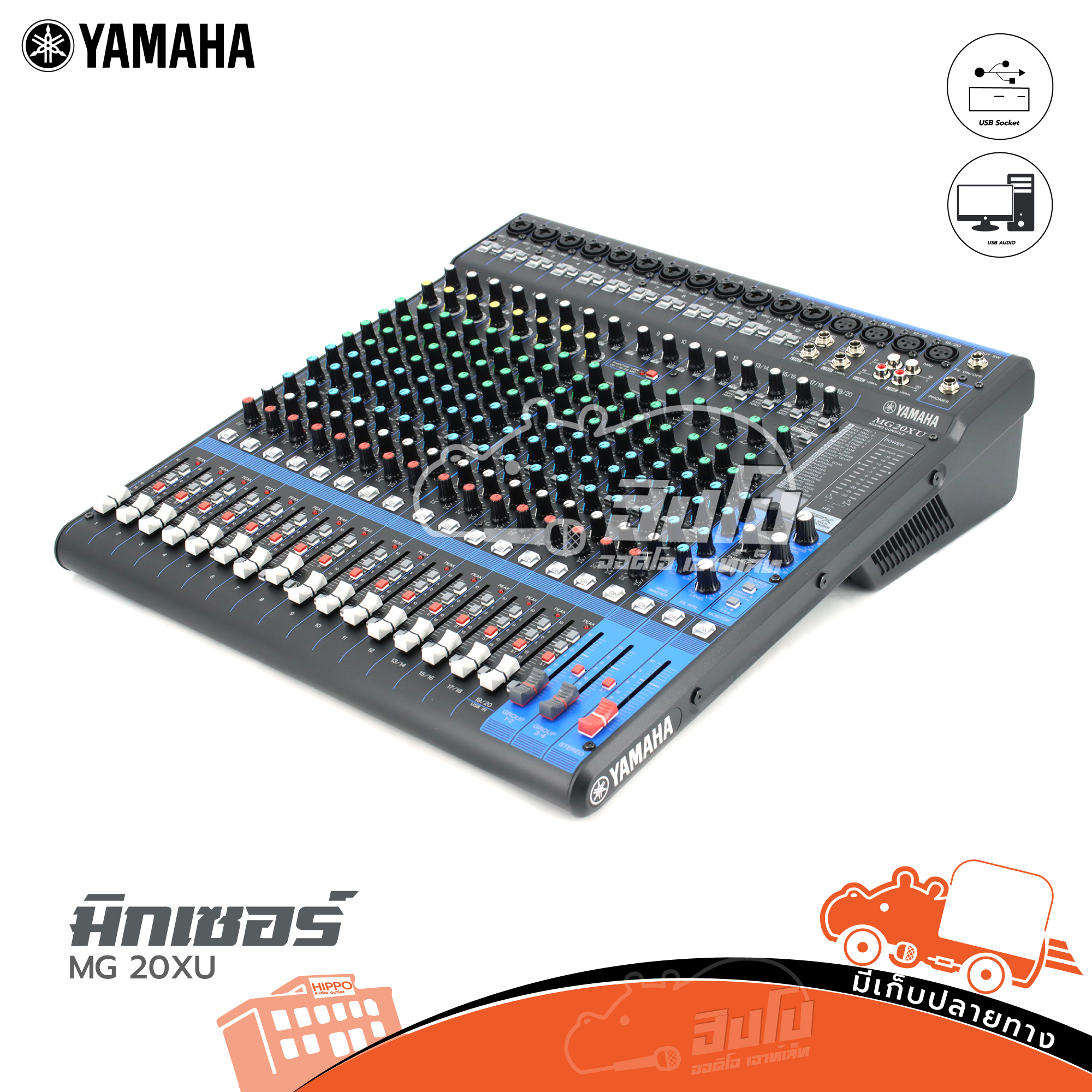

YAMAHA MG 20 XU มิกซ์เซอร์

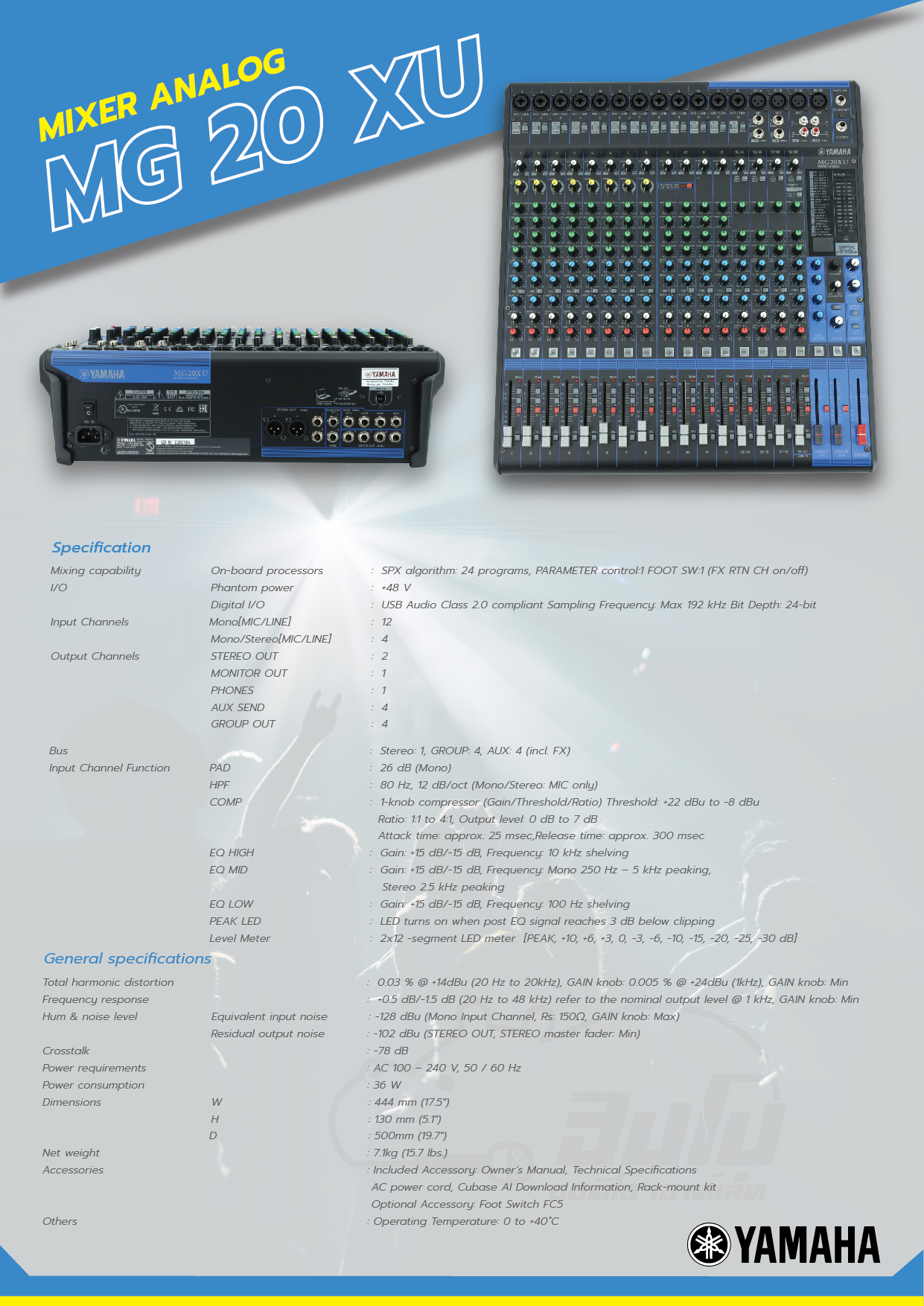

Specs
Mixing capability
|
On-board processors |
SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
I/O
|
Phantom power
|
+48 V
|
| |
Digital I/O |
USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
Input Channels
|
Mono[MIC/LINE] |
12 |
| |
Mono/Stereo[MIC/LINE] |
4 |
Output Channels
|
STEREO OUT |
2 |
| |
MONITOR OUT |
1 |
| |
PHONES |
1
|
| |
AUX SEND |
4
|
| |
GROUP OUT
|
4
|
Bus
|
|
Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
|
Input Channel Function
|
PAD
|
26 dB (Mono)
|
| |
HPF
|
80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
|
| |
COMP
|
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
|
| |
EQ HIGH
|
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
|
| |
EQ MID
|
Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
|
| |
EQ LOW
|
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
|
| |
PEAK LED
|
LED turns on when post EQ signal reaches 3 dB below clipping
|
| |
Level Meter
|
2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
|
General specifications
| Total harmonic distortion |
|
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response |
|
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Hum & noise level |
Equivalent input noise |
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| |
Residual output noise |
-102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk |
|
-78 dB |
| Power requirements |
|
AC 100 – 240 V, 50 / 60 Hz |
| Power consumption |
|
36 W |
| Dimensions |
W |
444 mm (17.5")
|
| |
H |
130 mm (5.1")
|
| |
D |
500mm (19.7")
|
| Net weight |
|
7.1kg (15.7 lbs.)
|
| Accessories |
|
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
|
Others
|
|
Operating Temperature: 0 to +40˚C
|
|
