| Specifications |
| Sensitivity for full rated power |
1.4 Volts RMS or 0.775 Volts |
| Frequency Response 20 Hz to 20 KHz |
1dB at any power level |
| Signal to Noise ratio 20 Hz to 20 KHz |
More than 103 dB |
| Total Harmonic Distortion (THD) |
0.10% |
| Intermodulation Distortion (IMD) |
0.05% |
| Damping Factor |
600 From 20 Hz to 400 Hz. (at 2 ohms load) |
| Load Impedance |
Safe with all types of loads |

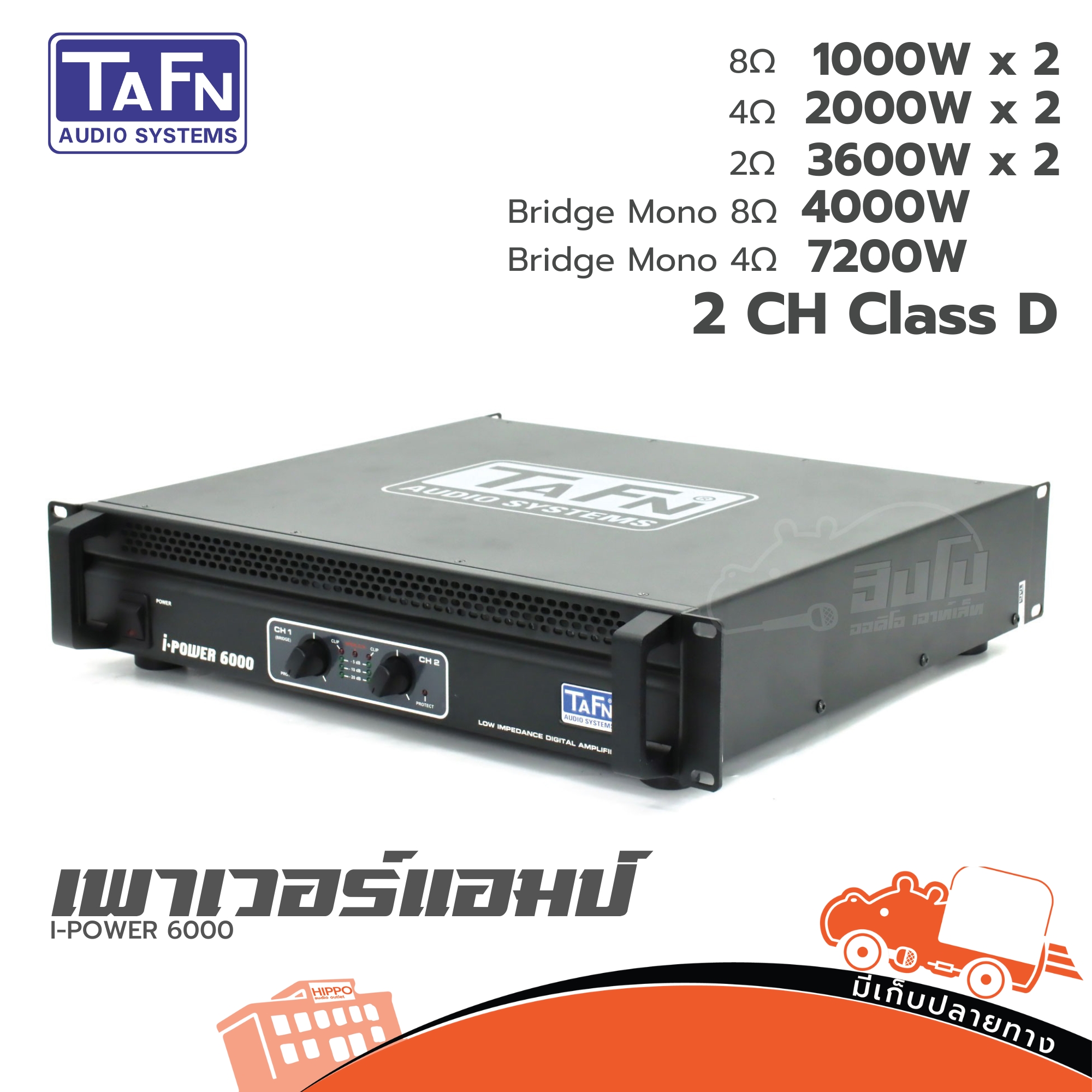

| Output power stereo mode |
| Output power stereo mode at 8 ohm (stereo) |
1000 + 1000 Watts RMS (both channels driven) |
| Output power stereo mode at 4 ohm (stereo) |
2000 + 2000 Watts RMS (both channels driven) |
| Output power stereo mode at 2.66 ohm (stereo) |
3000 + 3000 Watts RMS (both channels driven) |
| Output power stereo mode at 2 ohm (stereo) |
3600 + 3600 Watts RMS (both channels driven) |
| Output power bridged mode |
| Output power bridged mode at 16 ohm (mono) |
2000 Watts RMS |
| Output power bridged mode at 8 ohm (mono) |
4000 Watts RMS |
| Output power bridged mode at 4 ohm (mono) |
7200 Watts RMS |

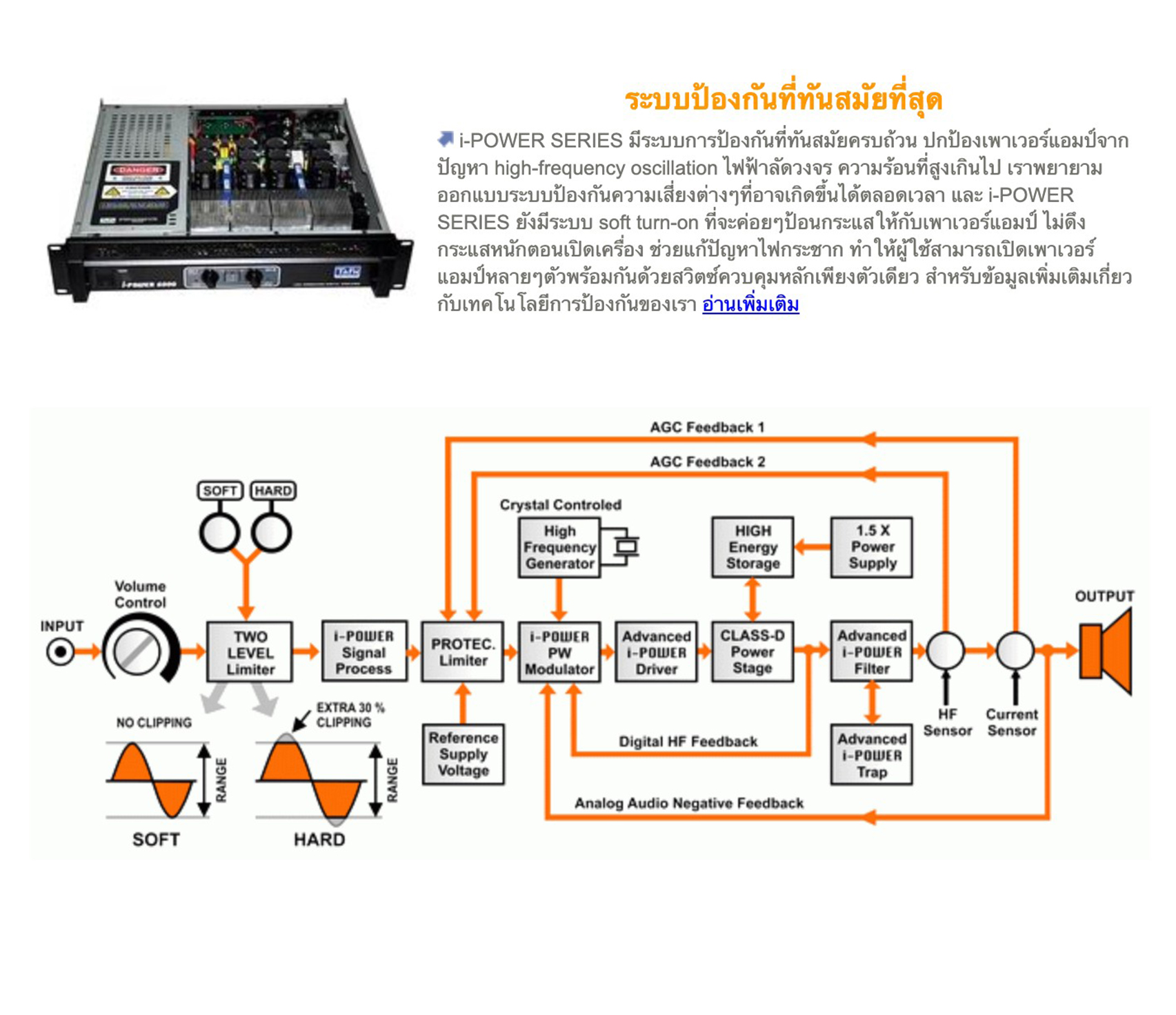

| Protection Systems |
| Overload and short-circuit protection |
Current limited controlled by ACC at 65A per CH. |
| Overheat protection |
Cut-off at internal 85 Deg. Resume at 50 Deg. |
| Power Supply protection |
Soft start - Against all severe voltage fluctuations |
| AC Input Voltage |
| Without affecting max. Output Power |
200 V - 250 Volts AC. (when loading 2 ohms) |
| At moderate power operation |
140 V - 250 Volts AC. (when loading 2 ohms) |
| Dimensions W x D x H |
480 x 438 x 88 mm (2U, 19" Rack mount) |
| Weight |
12.9 Kg |
