2 – CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
STEREO[LINE]
3 – CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
2 – CH1: 6.3 mm (1/4″) Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES
SMARTPHONE
1 – 4-pole mini input/output (TRRS)
MONITOR OUT
2 – LR Stereo: XLR, 1/4 TRS Phone
STEREO OUT
1 – MIX: LR Stereo TRS Phone
USB

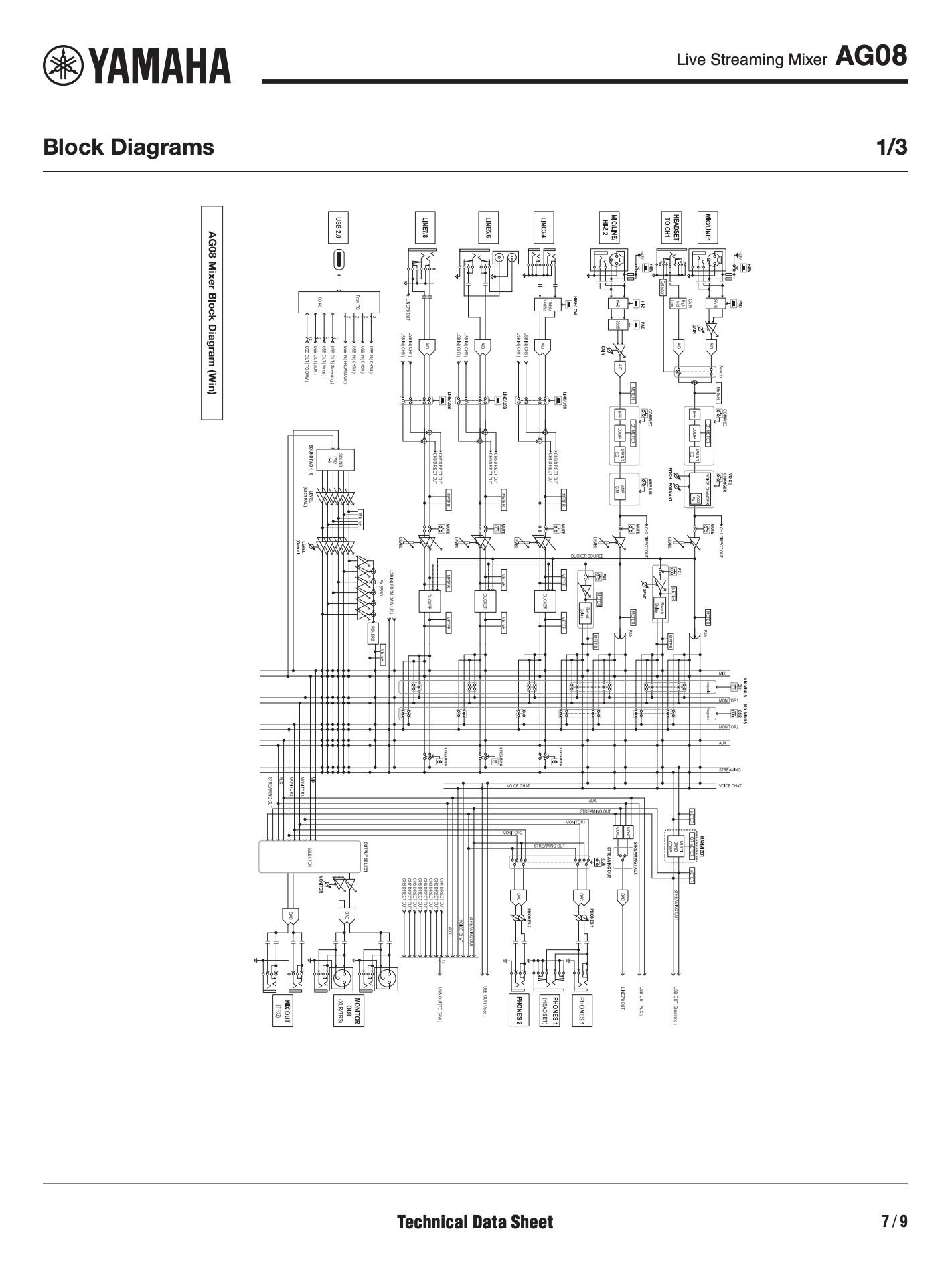

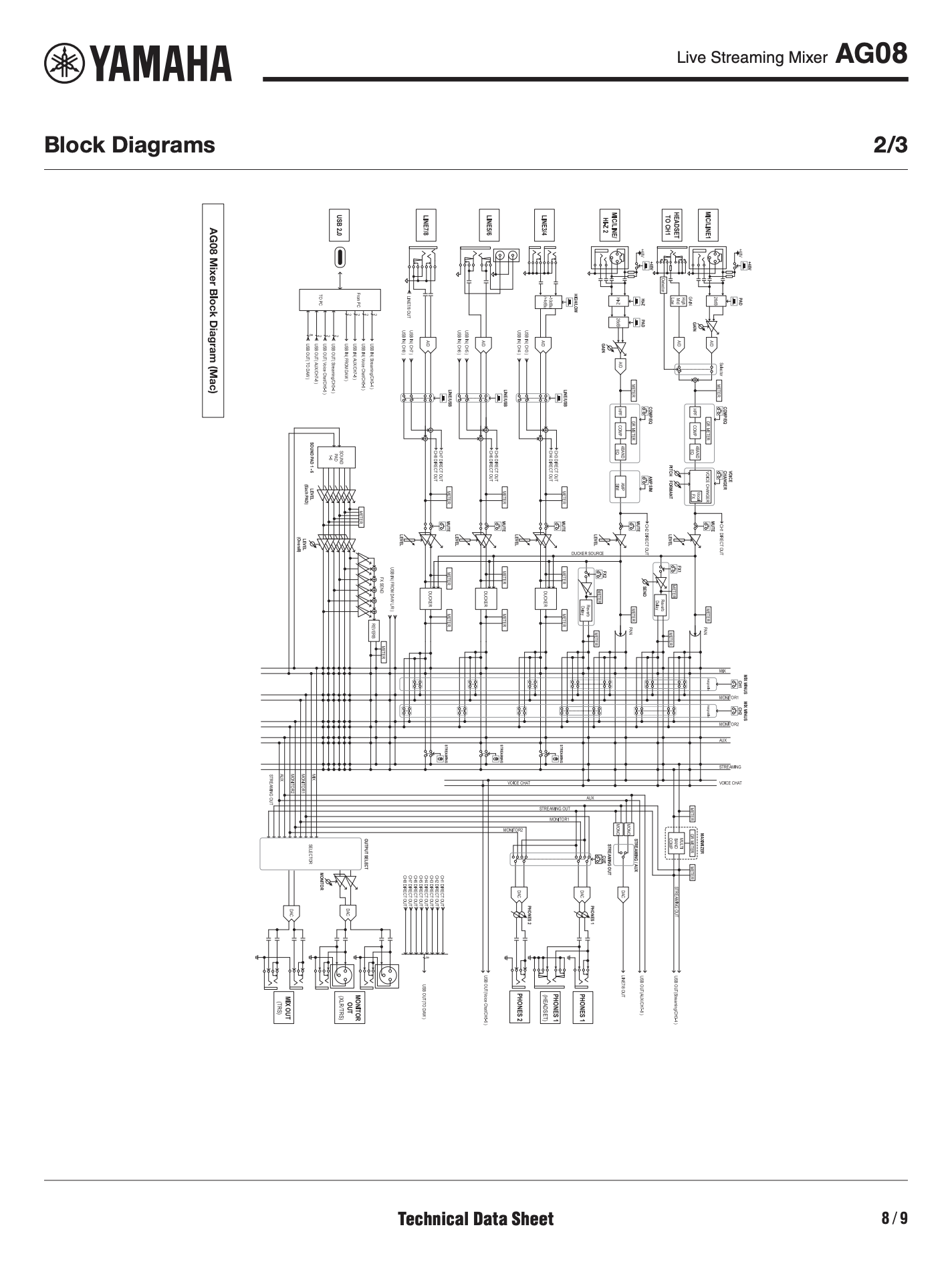

1 – USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.
BUS
4 Stereo
FUNCTIONS
MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
ON-BOARD PROCESSORS
DSP
Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller
USB
USB AUDIO
8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
USB DC POWER INPUT
1 – Type-C, 5 V DC, 1.5 A

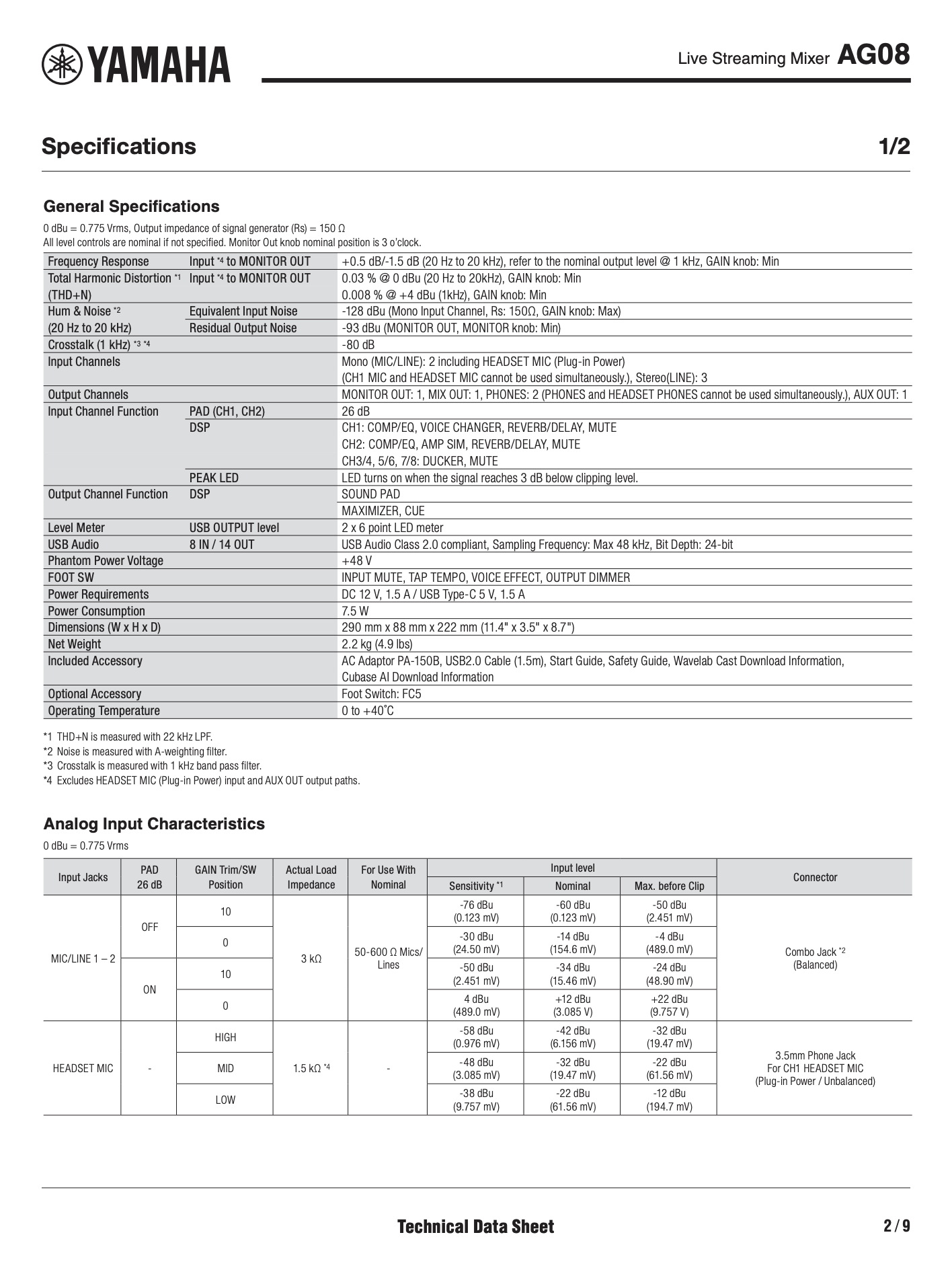

GENERAL SPECIFICATIONS
POWER REQUIREMENTS
DC 12 V, 1.5 A / USB-C 5 V, 1.5 A
POWER CONSUMPTION
Max. 7.5 W
INCLUDED ACCESSORIES
AC adapter PA-150B, USB 2.0 Cable (1.5 m), Quick Guide,Safety Guide, Wavelab Cast Download Information,Cubase AI Download Information
