Mono Channels: High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 2.5 kHz (Bell) Low: ±15 dB at 100 Hz (Shelving) Stereo Channels: High: ±15 dB at 10 kHz (Shelving) Low: ±15 dB at 100 Hz (Shelving)
Graphic EQ
None
Filters
Input Channels: 10 x High-Pass: 80 Hz
Solo/Mute
PFL per Input Channel, Bus, FX Bus
Channel Output/Source Monitoring
PFL
Built-In Effects
24 x Stereo Effect (Type Unspecified)

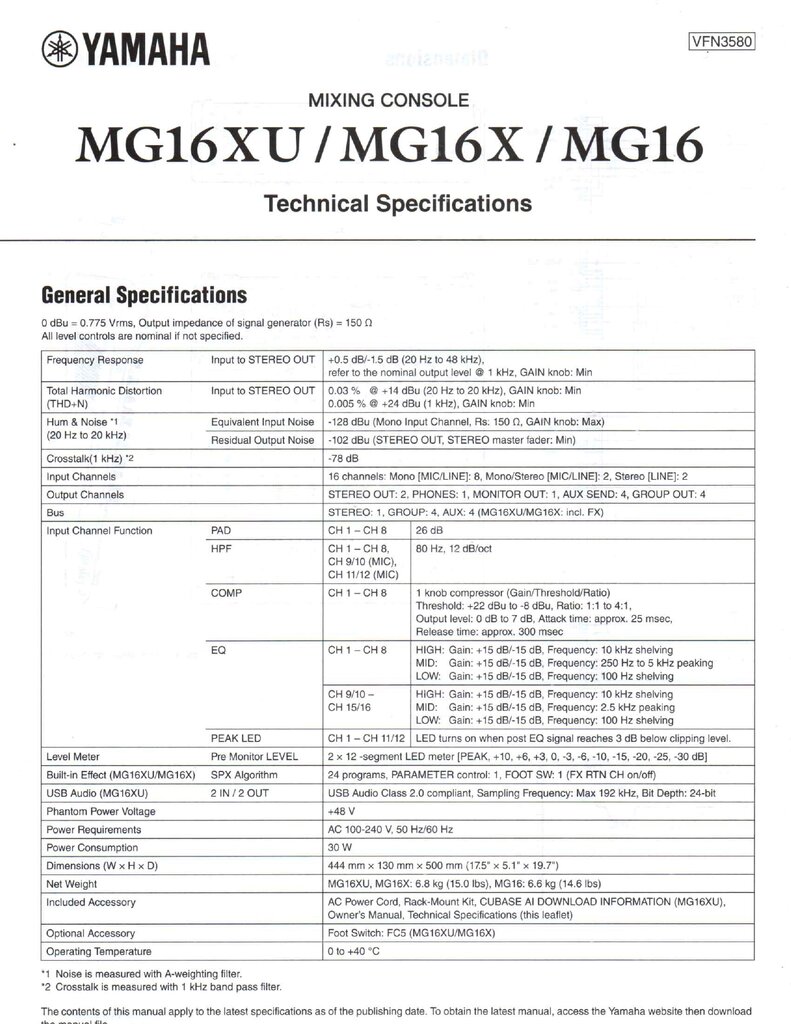

Performance
Frequency Response
20 Hz to 48 kHz +0.5/-1.5 dB (at 1 kHz, Gain Min)
Output Level
+30 dBu at Max Gain
I/O Impedance
Combo XLR-1/4″, XLR Mic Input: 3 Kilohms 1/4″ Line Input: 10 Kilohms (Unbalanced)
Crosstalk
-78 dB at 1 kHz
EIN
-128 dBu at Max Gain
Noise Floor
-102 dBu (Residual Output Noise)
THD+N
0.03% at Min Gain (+14 dBu, 20 Hz to 20 kHz) 0.005% at Min Gain (+24 dBu, 1 kHz)
Connectivity
Analog Inputs
8 x Combo XLR-1/4″ 3-Pin Balanced/Unbalanced Mic/Line Input 2 x XLR 3-Pin Balanced Mic Input 8 x 1/4″ TS Unbalanced Line Input (4 Stereo Pairs) 1 x 1/4″ TS Footswitch Input
Analog Outputs
2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair) 2 x 1/4″ TRS Balanced Stereo Main Output (1 Stereo Pair) 4 x 1/4″ TRS Balanced Stereo Bus Output (1 Stereo Pair) 2 x 1/4″ TRS Balanced Stereo Monitor Output (1 Stereo Pair) 4 x 1/4″ TRS Balanced Mono Aux Send 1 x 1/4″ TRS Unbalanced Stereo Headphone Output
