YAMAHA STAGEPAS 200 ตู้ลำโพง 2 ทาง 8 นิ้ว มีแอมป์ขยาย 180 วัตต์ มีบลูทูธพร้อมมิกเซอร์ 5 CH
| |
|

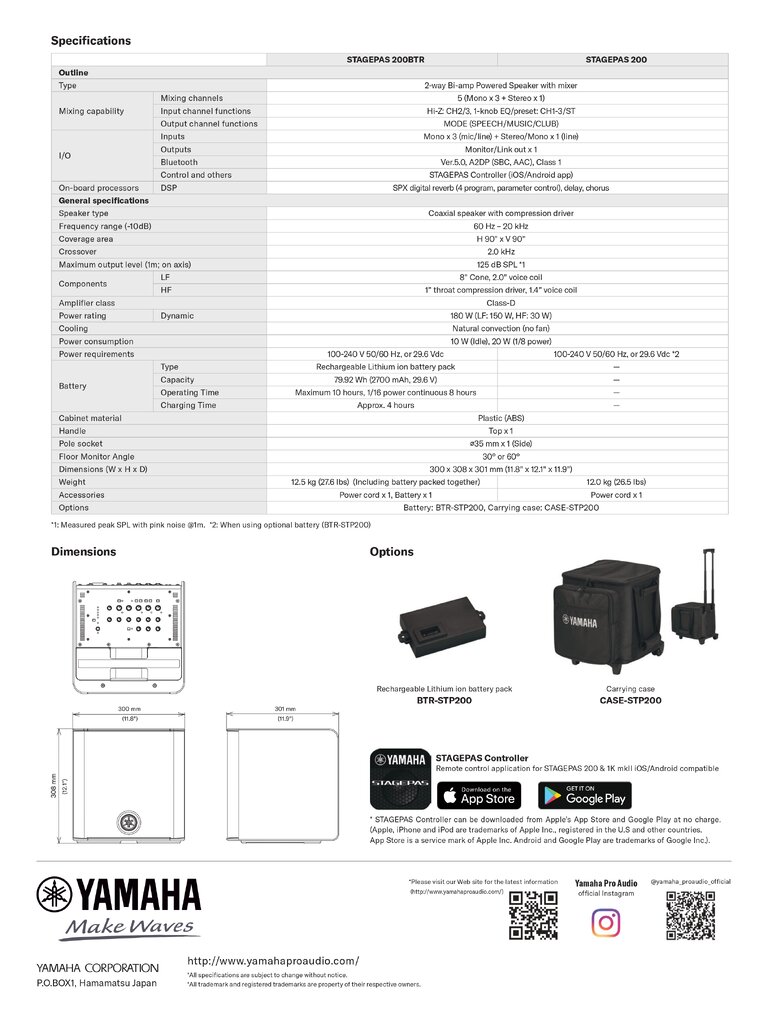

STAGEPAS 200 |
| Outline |
| Type |
|
2-way Bi-amp Powered Speaker with mixer |
| Mixing capability |
Mixing channels |
5 (Mono x3 + Stereo x1) |
| |
Input channel functions |
Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST |
| |
Output channel functions |
MODE (SPEECH/MUSIC/CLUB) |
| I/O |
Inputs |
Mono x3 (mic/line) + Stereo/Mono x1 (line) |
| |
Outputs |
Monitor/Link out x1 |
| |
Bluetooth |
Ver.5.0, A2DP (SBC, AAC), Class 1 |
| |
Control and others |
STAGEPAS Controller (iOS/Android app) |
| On-board processors |
DSP |
SPX digital reverb (4 program, parameter control), delay, chorus |
| General specifications |
| Speaker type |
Coaxial speaker with compression driver |
| Frequency range (-10dB) |
60 Hz – 20 kHz |
| Coverage area |
H90ﾟ x V90ﾟ |
| Crossover |
2.0 kHz |
| Maximum output level (1m; on axis) |
125 dB SPL *1 |
| Components |
LF |
8" Cone, 2.0" voice coil |
| |
HF |
1" throat compression driver, 1.4" voice coil |
| Amplifier class |
Class-D |
| Power rating |
Dynamic |
180 W (LF: 150 W, HF: 30 W) |
| Cooling |
Natural convection (no fan) |
| Power consumption |
10 W (Idle), 20 W (1/8 power) |
| Power requirements |
100-240 V 50/60 Hz, or 29.6 Vdc *2 |
|
Battery
|
Type |
- |
| Capacity |
- |
| Operating Time |
- |
| Charging Time |
- |
| Cabinet material |
Plastic (ABS) |
| Handle |
Top x1 |
| Pole socket |
Φ35 mm x1 (Side) |
| Floor Monitor Angle |
30° or 60° |
| Dimensions (W x H x D) |
300 x 308 x 301 mm (11.8" x 12.1" x 11.9") |
| Weight |
12.0 kg (26.5 lbs) |
| Accessories |
Power cord x 1 |
| Options |
Battery: BTR-STP200, Carry case: CASE-STP200 |
*1: Measured peak SPL with pink noise @1 m.
*2: When using optional battery (BTR-STP200)
