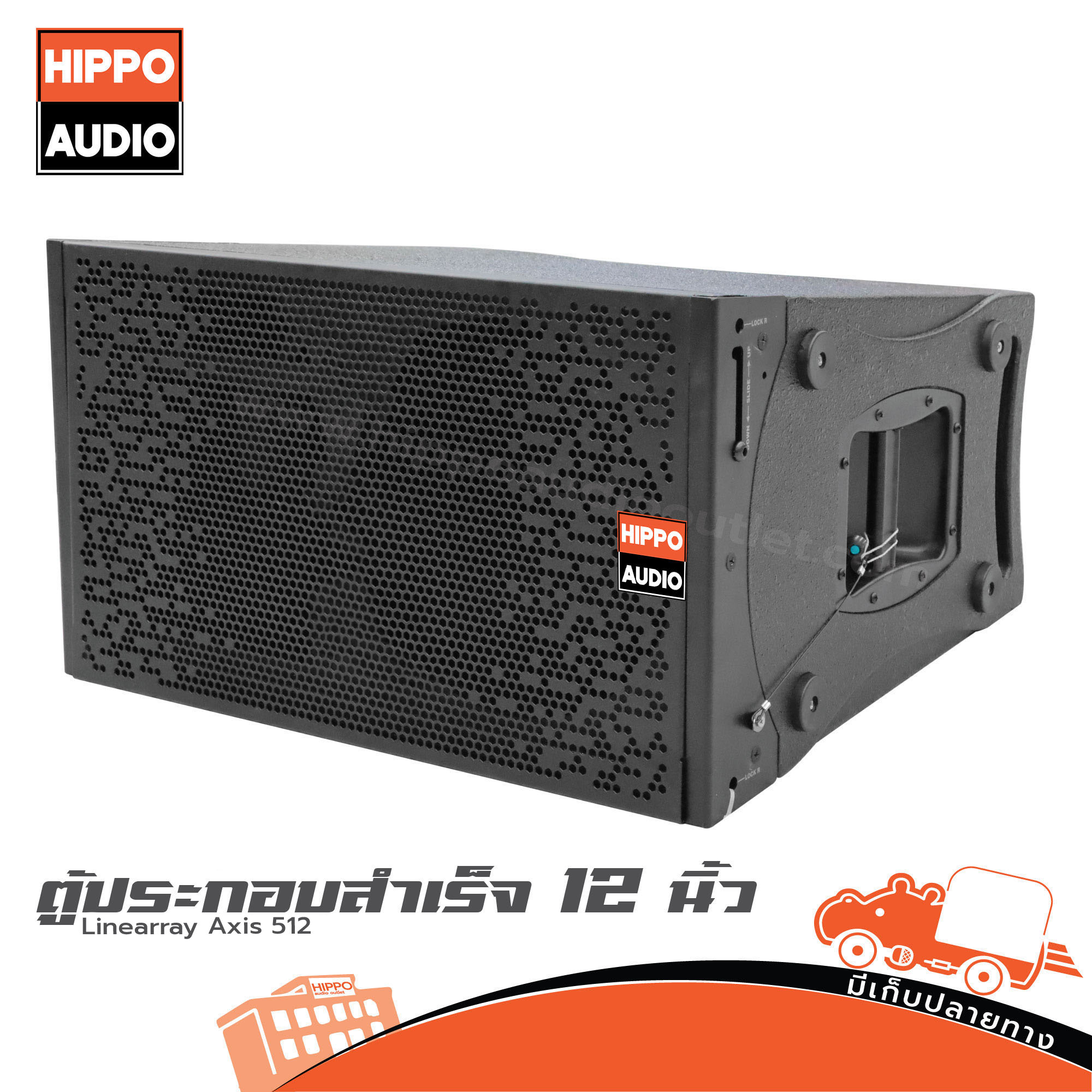

ตู้ลำโพงเสียงกลาง 12 นิ้ว ตู้แขวน Axis 512 HIPPO (PP1)

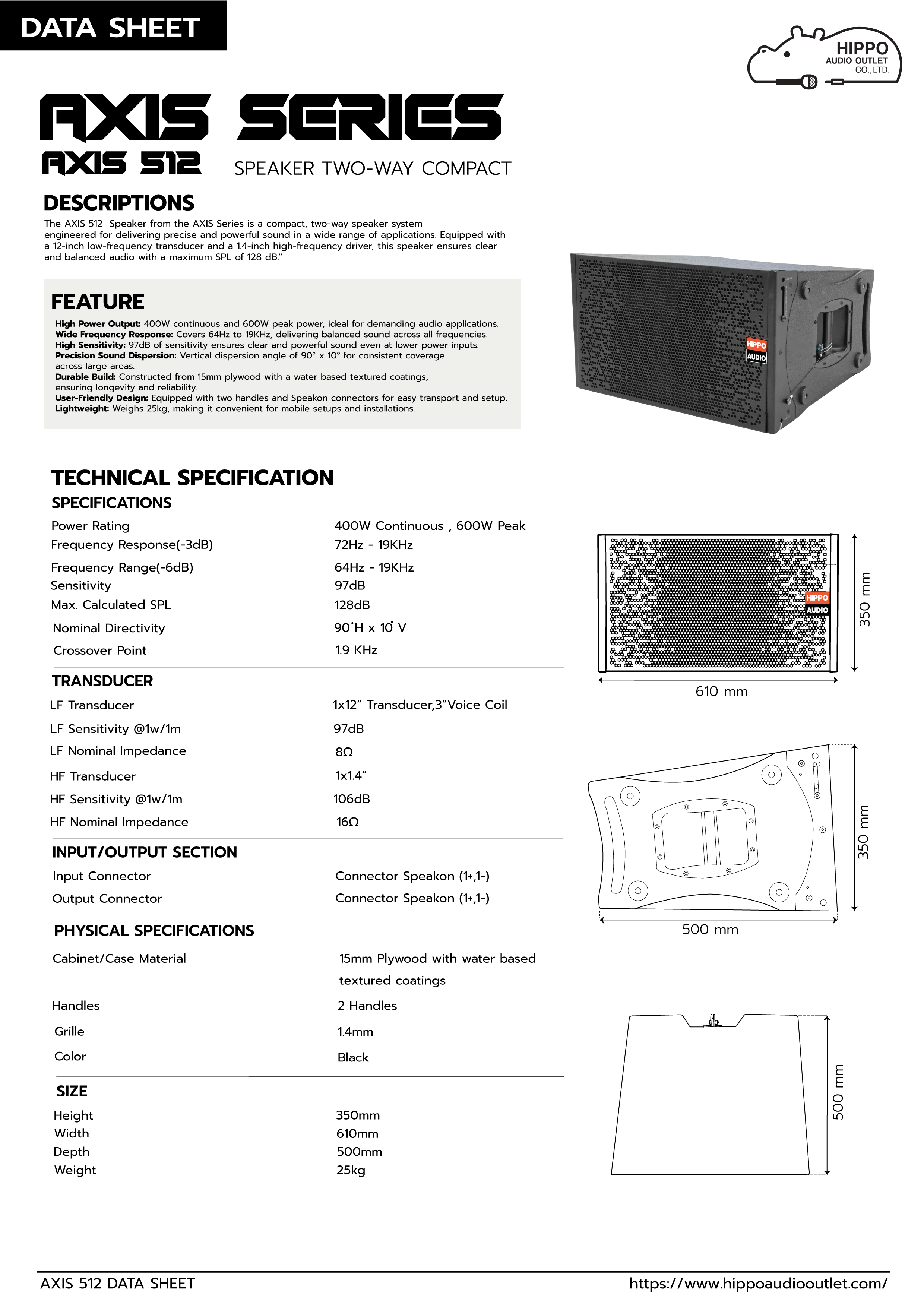

SPECIFICATIONS

AXIS 512

Power Rating

400W Continuous, 600W Peak

Frequency Response (-3dB)

72Hz - 19KHz

Frequency Range (-6dB)

64Hz - 19KHz

Sensitivity

97dB

Max. Calculated SPL

128dB

Nominal Directivity

90°H x 10°V

Crossover Point

1.9 KHz

TRANSDUCER

LF Transducer

1x12" Transducer, 3" Voice Coil

LF Sensitivity @1w/1m

97dB

LF Nominal Impedance

8Ω

HF Transducer

1x1.4"

HF Sensitivity @1w/1m

106dB

HF Nominal Impedance

16Ω

INPUT/OUTPUT SECTION

Input Connector

Connector Speakon (1+,1-)

Output Connector

Connector Speakon (1+,1-)

PHYSICAL SPECIFICATIONS

Cabinet/Case Material

15mm Plywood with water-based textured coatings

Handles

2 Handles

Grille

1.4mm

Color

Black

SIZE

Height

350mm

Width

610mm

Depth

500mm

Weight

25kg
