Main Feature - Mode switch for stereo 2-way/3-way or mono 4-way operation - Low frequency summed (subwoofer) output - x10 range switch on both channel - 40Hz high pass (low cut) filter both channel - Phase reverse switch on all output - Individual level control on all output - 24dB/octave Linkwitz-Riley filter (the professional standard) - Stereo/Mono status LED indicate the selected mode

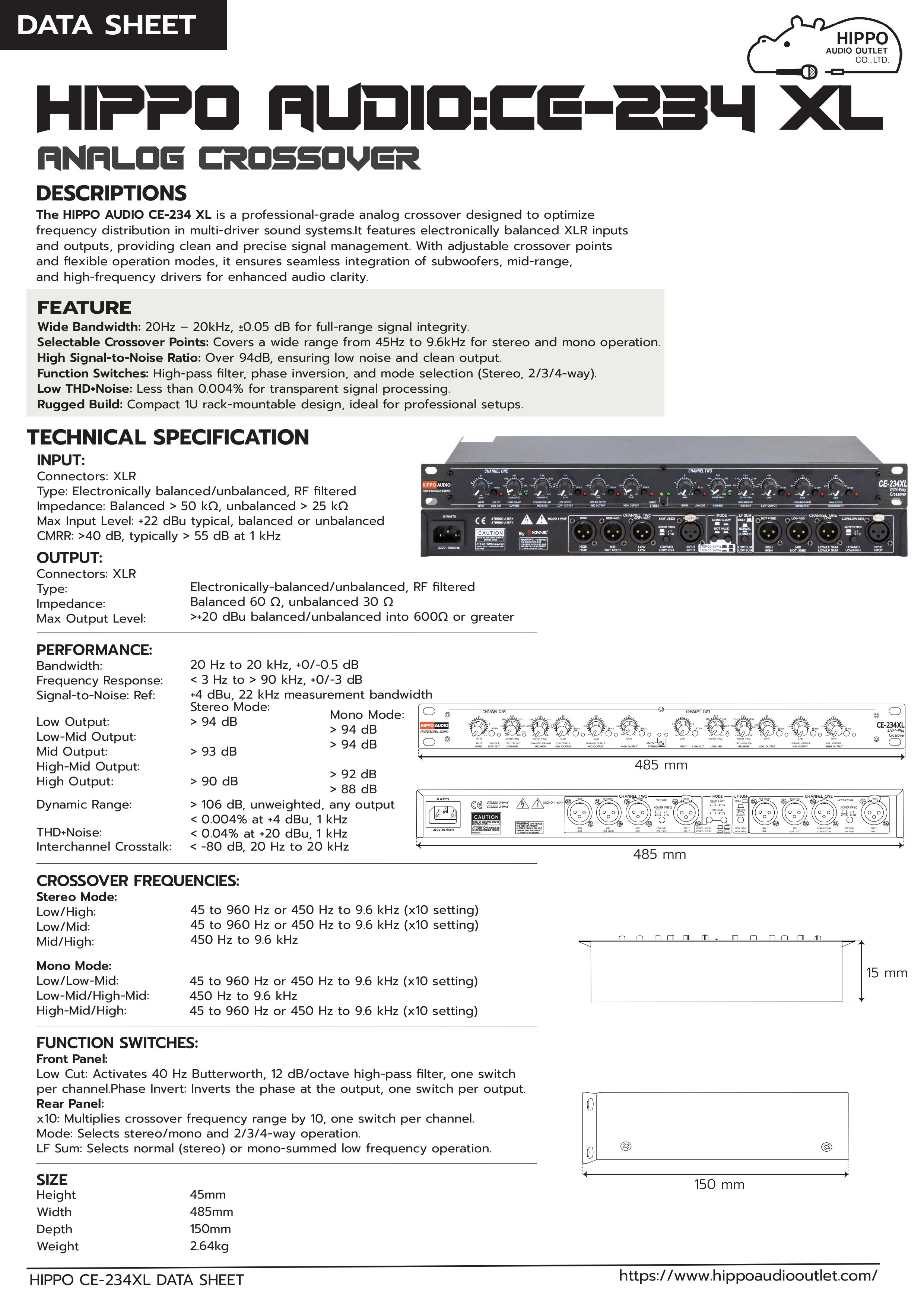

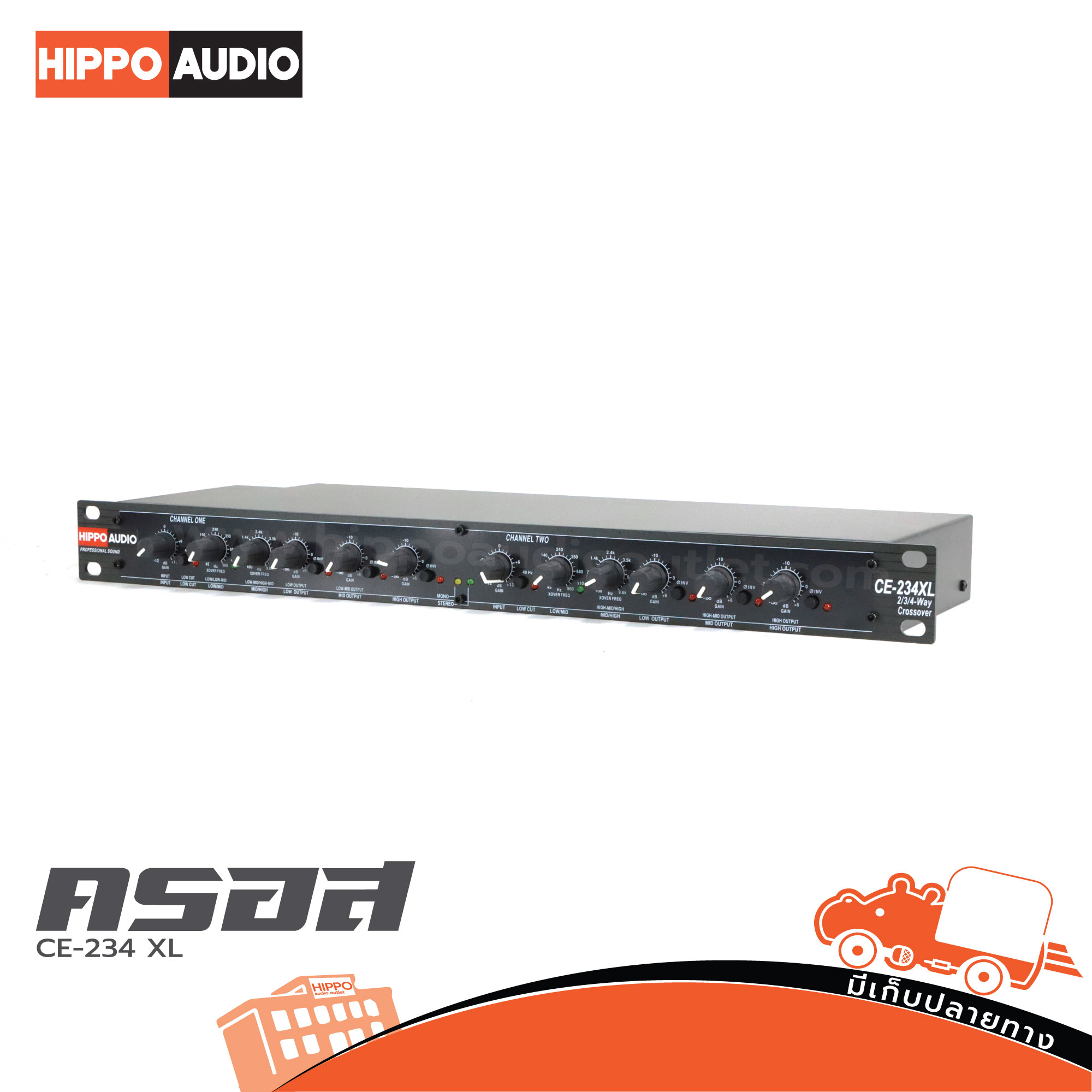

HIPPO CE-234 XL ครอส
INPUT: Connectors: XLR (223XL/234XL) Type: Electronically balanced/unbalanced, RF filtered Impedance: Balanced > 50 kΩ, unbalanced > 25 kΩ Max Input Level: +22 dBu typical, balanced or unbalanced CMRR: >40 dB, typically > 55 dB at 1 kHz
OUTPUT (223XL/234XL): Connectors: XLR Type: Electronically-balanced/unbalanced, RF filtered Impedance: Balanced 60 Ω, unbalanced 30 Ω Max Output Level: >+20 dBu balanced/unbalanced into 600Ω or greater
PERFORMANCE: Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth
Stereo Mode:
Mono Mode:
Low Output:
> 94 dB
> 94 dB
Low-Mid Output:
> 94 dB
Mid Output:
> 93 dB
High-Mid Output:
> 92 dB
High Output:
> 90 dB
> 88 dB
Dynamic Range: > 106 dB, unweighted, any output THD+Noise: < 0.004% at +4 dBu, 1 kHz < 0.04% at +20 dBu, 1 kHz Interchannel Crosstalk: < -80 dB, 20 Hz to 20 kHz
CROSSOVER FREQUENCIES: 234/234XL: Stereo Mode: Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting) Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting) Mid/High: 450 Hz to 9.6 kHz
234/234XL: Mono Mode: Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting) Low-Mid/High-Mid: 450 Hz to 9.6 kHz High-Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
FUNCTION SWITCHES: Front Panel: Low Cut: Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel. Phase Invert: Inverts the phase at the output, one switch per output.
Rear Panel: x10: Multiplies crossover frequency range by 10, one switch per channel. Mode: Selects stereo/mono and 2/3/4-way operation. LF Sum: Selects normal (stereo) or mono-summed low frequency operation.
INDICATORS: Stereo Operation: Green LED Mono Operation: Yellow LED Low Cut: Red LED per channel x10: Green LED per channel Phase Invert: Red LED per output (3 per channel)
PHYSICAL: Dimensions: 1.75" H x 19" W x 6.9" D (4.4 cm x 48.3 cm x 17.5 cm) Weight: 234: 4.0 lbs. (1.8 kg) 223: 3.7 lbs. (1.7 kg) Shipping Weight: 234: 5.8 lbs. (2.6 kg) 223: 5.4 lbs. (2.5 kg)
