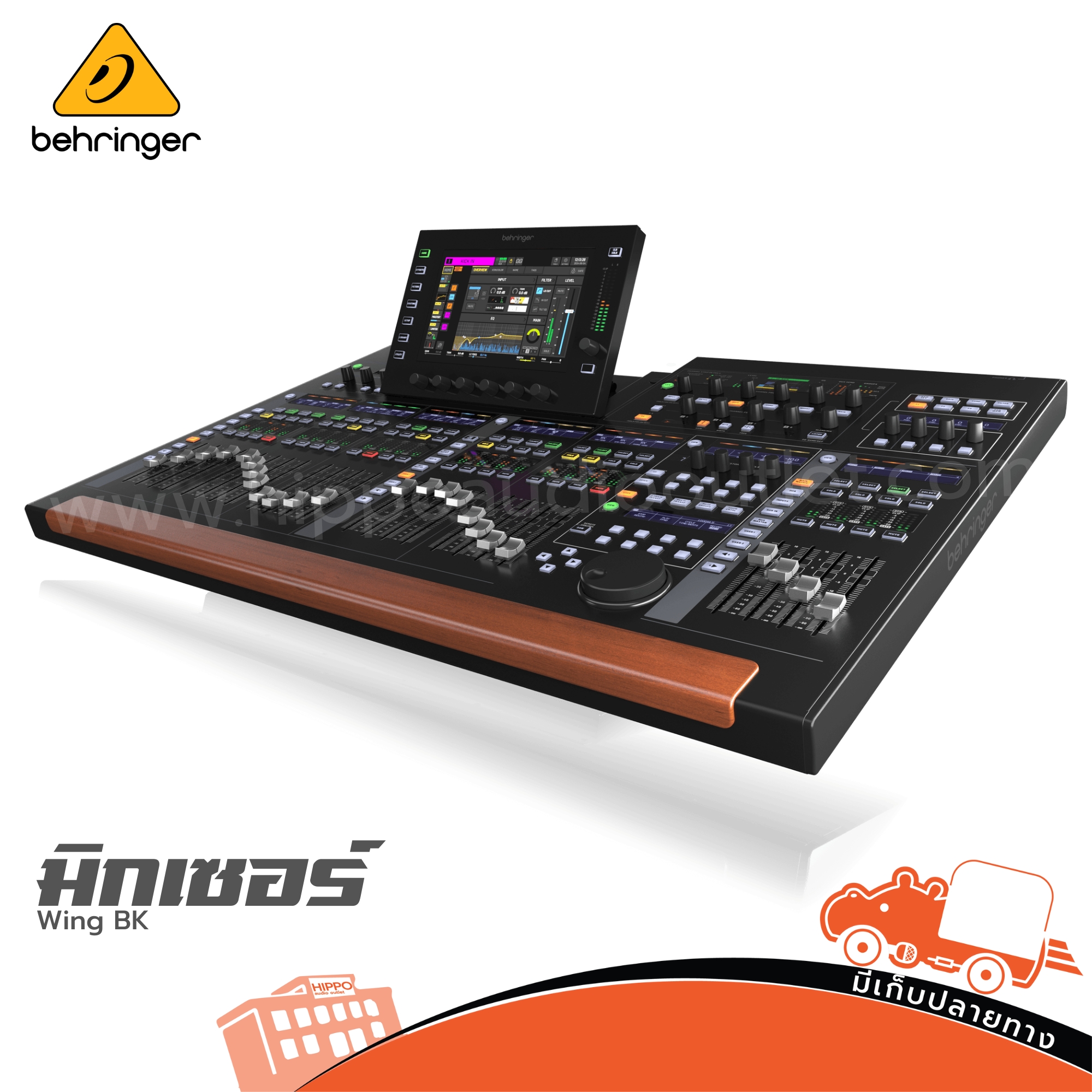

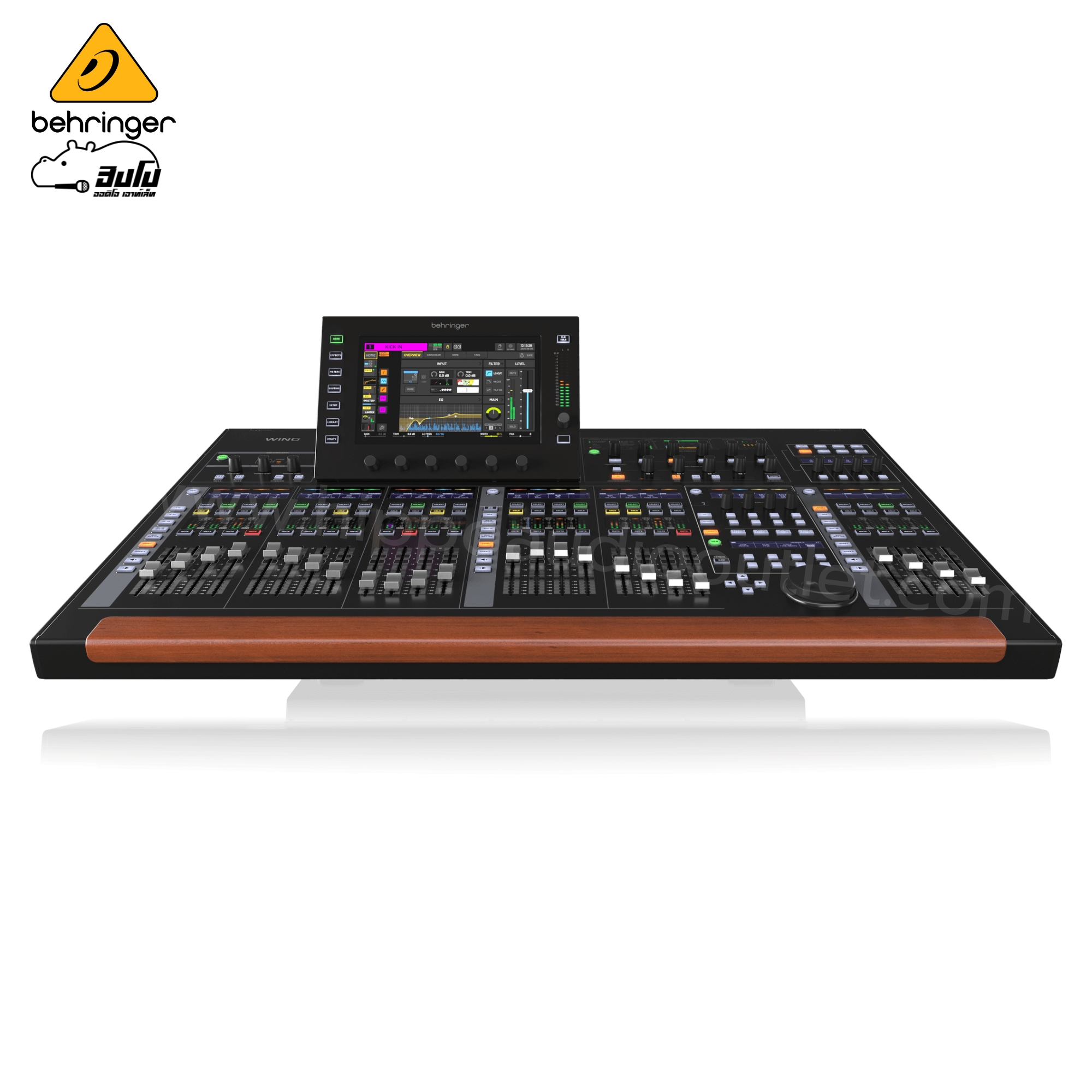

BEHRINGER WING BK มิกเซอร์ (พรีออเดอร์)
WING
48 Stereo Channels, 28 Bus Full Stereo Digital Mixing Console with 8 Midas PRO Preamps, 8 Midas PRO Outputs, 10.1" Touch Screen and 24 Fader Control Surface
- 8 Midas PRO mic preamps and outputs provide industry-reference sound quality
- 24 motorized 100 mm faders in 3 separate, fully configurable sections
- 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
- 10.1 inch main display with multi-touch screen and adjustable swivel
- Custom Controls offering 16 configurable buttons, 4 rotary controls and one large control wheel for smooth, personalized workflow
- Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
- 16 True-stereo effects processing engines, with 80+ world-class algorithms
- 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- 40 Stereo Input Channels with 5 variable plug-in processing slots each
- 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- 8 Mute Groups and 8 DCA's for track grouping and consolidation
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
- Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
- StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- 4 channel GPIO for controlling almost anything with WING
- 5-Pin MIDI in and out for control and synchronization with external devices
- DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
- Touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for unique channel identification
| Input/Output Characteristics |
| Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting) |
10 Hz - 20 kHz |
| Dynamic range, analog in to analog out (typical), XLR / aux |
111 dB / 108 dB |
| A/D dynamic range, preamplifier and converter (typical), XLR / aux |
112 dB / 110 dB |
| D/A dynamic range, converter and output (typical), XLR / aux |
118 dB / 112 dB |
| Crosstalk rejection @ 1 kHz, adjacent channels |
100 dB |
| Output level, XLR connectors (nominal / maximum) |
+4 dBu / +21 dBu |
| Output impedance, XLR connectors (unbalanced / balanced) |
75 Ω / 75 Ω |
| Input impedance, TRS connectors (unbalanced / balanced) |
20 kΩ / 40 kΩ |
| Non-clip maximum input level, TRS connectors |
+16 dBu |
| Aux output level, TRS (nominal / maximum) |
+4 dBu / +16 dBu |
| Aux output impedance, TRS (unbalanced / balanced) |
150 Ω / 300 Ω |
| Phones output impedance / maximum output level |
500 mW @ 75 ohm / +18 dBu |
| Residual noise level, XLR out 1-16 connectors, unity gain |
-97 dBu |
| Residual noise level, aux and monitor TRS out connectors |
-95 dBu |
| Displays |
| Main screen |
10.1" TFT LCD, 1280 x 800 px, capacitive touch |
| Main screen swivel, continuous adjustment |
15°- 60° |
| 4-channel group LCD screen with RGB color strip per channel |
320 x 48 monochrome |
| Channel editing screen |
2.4" TFT LCD, 320 x 240 px |
| Main stereo meter |
18 segment (-60 dB to clip) |
| Controls |
| 100 mm motor faders |
12 + 8 + 4 |
| Touch-sensitive rotary controls |
3 + 7 + 11 + 4 + 4 |
| Custom controls |
8 |
| Fully assignable rotary controls |
4 |
| Fully assignable backlit buttons |
8 + 8 |
| Variable rotary controls / buttons |
4 / 4 |
| Power |
| Switch-mode power supply |
Auto-ranging 100-240 VAC (50/60 Hz) |
| Power consumption |
130 W |
| Physical |
| Standard operating temperature range |
5°C – 40°C (41°F – 104°F) |

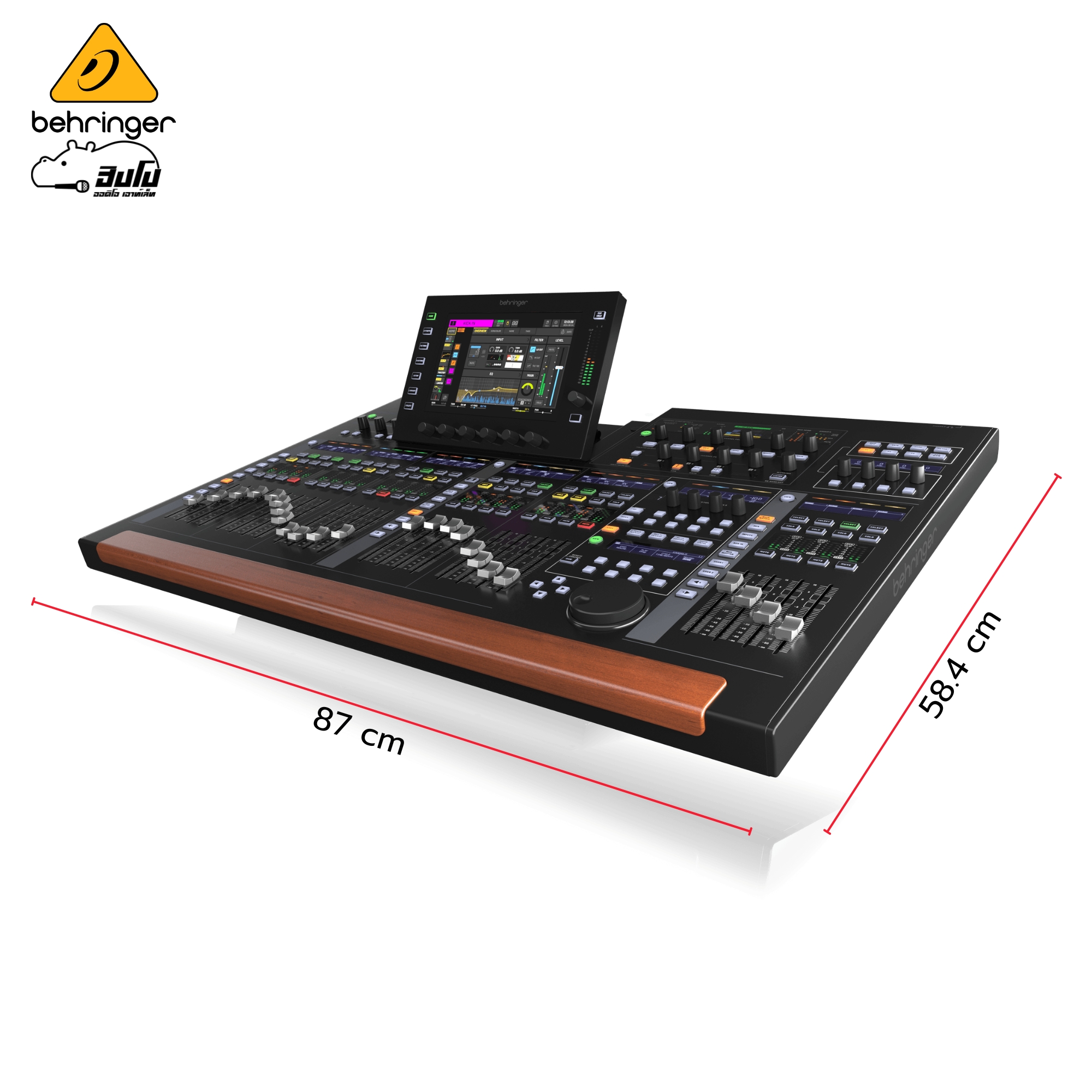

| Dimensions (HxWxD) |
201 x 870 x 575 mm (7.9 x 34.3 x 22.6") |
| Weight |
24 kg (52.8 lbs) |
|
